三路3输入或非门 Triple 3-input NOR Gate
The VHC27 is an advanced high speed CMOS 3-Input NOR Gate fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.
得捷:
IC GATE NOR 3CH 3-INP 14SOIC
立创商城:
74VHC27MX
贸泽:
Logic Gates Trp 3-Input NOR Gate
艾睿:
NOR Gate 3-Element 3-IN CMOS 14-Pin SOIC N T/R
富昌:
74VHC27 Series 2 - 5.5 V Triple 3-Input NOR Gate - SOIC-14
Chip1Stop:
NOR Gate 3-Element 3-IN CMOS 14-Pin SOIC N T/R
Verical:
NOR Gate 3-Element 3-IN CMOS 14-Pin SOIC N T/R
罗切斯特:
NOR Gate 3-Element 3-IN CMOS 14-Pin SOIC N T/R
电源电压DC 5.00 V
输出接口数 1
电路数 3
逻辑门个数 3
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

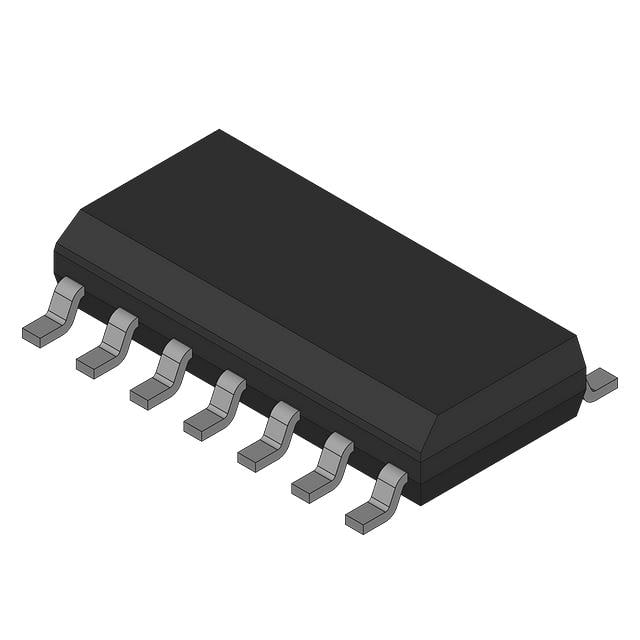

封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
