单路2输入正或非门 SINGLE 2-INPUT POSITIVE-NOR GATE
description/ordering information
This device contains a single 2-input NOR gate that performs the Boolean function Y = A • B or Y = A + B in positive logic.
• Operating Range of 4.5 V to 5.5 V
• Max tpd of 6.5 ns at 5 V
• Low Power Consumption, 10-µA Max ICC
• ±8-mA Output Drive at 5 V
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
– 1000-V Charged-Device Model C101
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 8.00 mA
电路数 1
位数 1
传送延迟时间 8.50 ns
电压波节 5.00 V
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5

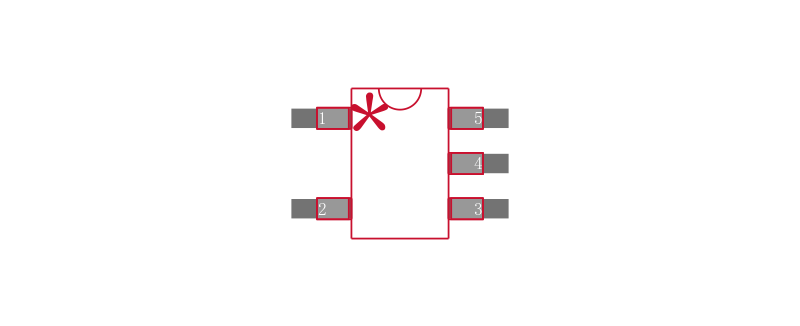

封装 SC-70-5
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
