低电压四2输入与非门与开漏输出和3.6V容限输入和输出 Low Voltage Quad 2-Input NAND Gate with Open Drain Outputs and 3.6V Tolerant Inputs and Outputs
General Description
The VCX38 contains four 2-input NAND gates with open drain outputs. This product is designed for low voltage 1.2V to 3.6V VCC applications with I/O compatibility up to 3.6V.
The VCX38 is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining CMOS low power dissipation.
Features
■ 1.2V to 3.6V VCC supply operation
■ 3.6V tolerant inputs and outputs
■ tPD 2.8 ns max for 3.0V to 3.6V VCC
■ Power-Off high impedance inputs and outputs
■ Static Drive IOL +24 mA @ 3.0V VCC
■ Uses patented Quiet Series¥ noise/EMI reduction circuitry
■ Latchup performance exceeds JEDEC 78 conditions
■ ESD performance:
Human body model ! 2000V
Machine model ! 250V

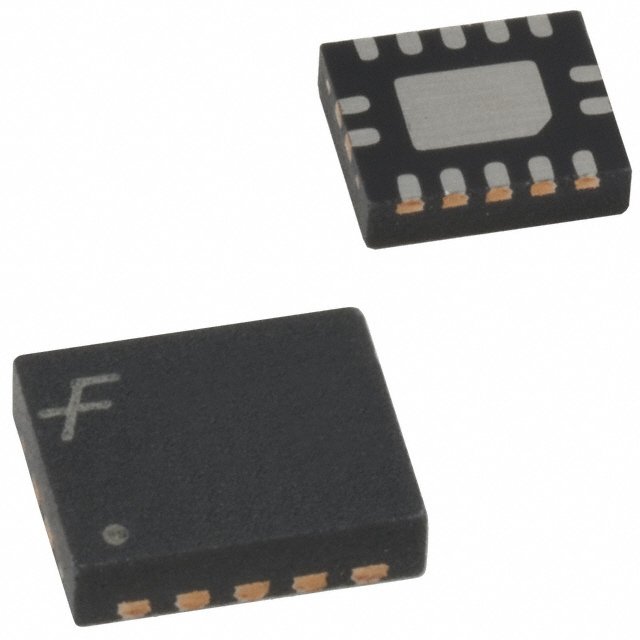

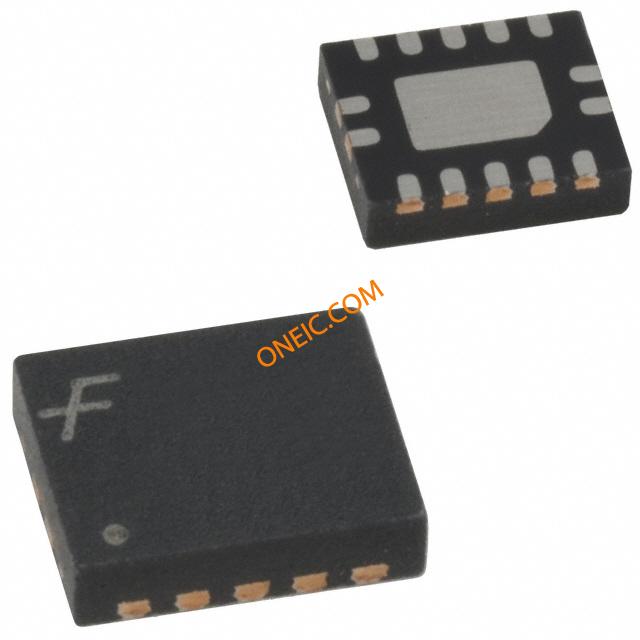

■ Leadless Pb-Free DQFN package
