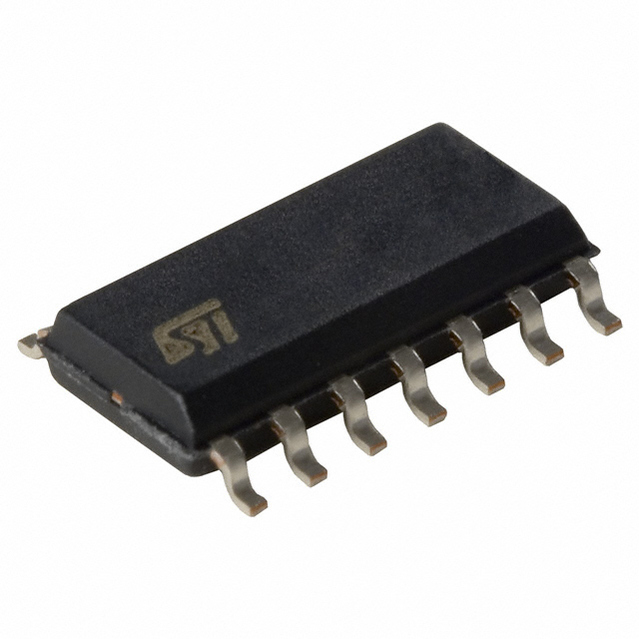

74LCX14MTR

低电压CMOS六施密特具有5V容限输入逆变器 LOW VOLTAGE CMOS HEX SCHMITT INVERTER WITH 5V TOLERANT INPUTS

Description

The 74LCX14 is a low voltage CMOS HEX SCHMITT inverter fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications. It can be interfaced to 5V signal environment for inputs.

Features

■ 5V tolerant inputs

■ High speed:

  –tPD= 5.0ns Max at VCC = 3V

■ Power down protection on inputs and outputs

■ Symmetrical output impedance:

  –|IOH| = IOL= 24mA Min at VCC= 3V

■ PCI bus levels guaranteed at 24mA

■ Balanced propagation delays:

  –tPLH ≅t PHL

■ Operating voltage range:

  –VCCOpr = 2.0V to 3.6V

■ Pin and function compatible with 74 series 14

■ Latch-up performance exceeds 500mA JESD 17

■ ESD performance:

  – HBM > 2000V MIL STD 883 method 3015; MM > 200V
