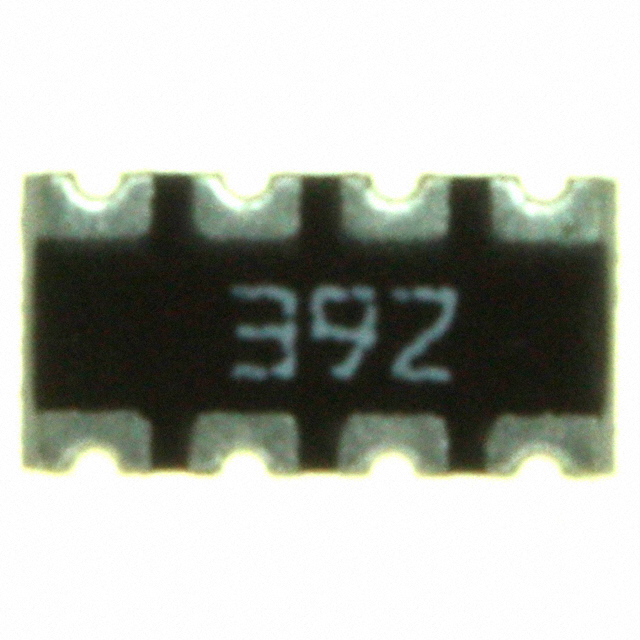

74X 系列 4 元件 39 kΩ ±5 % 外壳 0603 x 4 表面贴装 贴片电阻 阵列
3.9k 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络,阵列 ±200ppm/°C 1206(3216 公制),凹面,长边端子
得捷:
RES ARRAY 4 RES 3.9K OHM 1206
立创商城:
3.9kΩ ±5%
艾睿:
Downsize multiple resistors onto a single chip with the 742C083392JP resistor array, developed by CTS. Its temperature coefficient is ±200 ppm/°C. This product&s;s 4 resistors have a value of 3.9K Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The 742C083392JP part has a concave termination style. It has a tolerance of 5%. This product is 3.2 mm long, 0.53 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology.
Chip1Stop:
Res Thick Film Array 3.9K Ohm 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Concave SMD Paper T/R
Verical:
Res Thick Film Array 3.9K Ohm 5% 0.25W1/4W ±200ppm/C ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R
容差 ±5 %
额定功率 0.25 W
耗散功率 0.063 W
电阻 3.9 KΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 0603

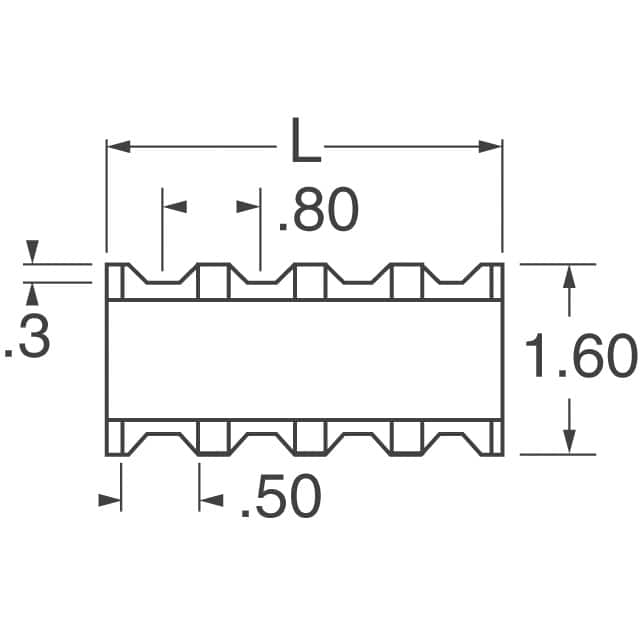

长度 3.2 mm
宽度 1.6 mm
高度 0.53 mm
封装公制 3216
封装 0603
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
