742 系列 0603 0.063 W 100 kOhm ±5 % 50 V 表面贴装 贴片电阻 阵列

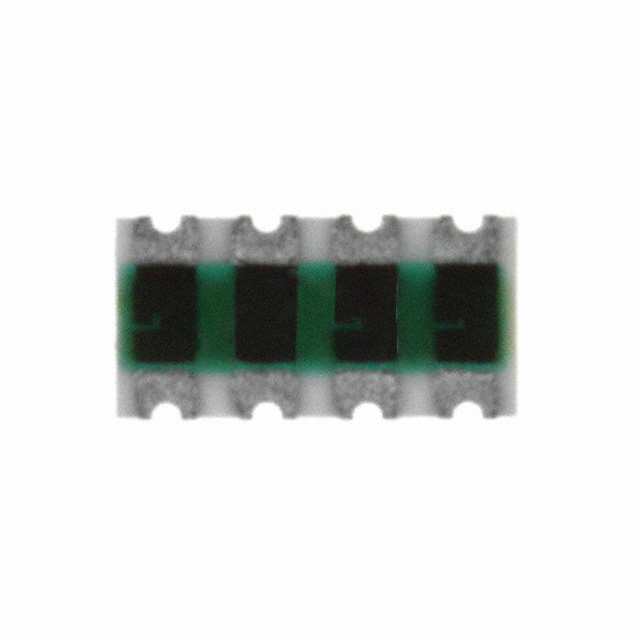

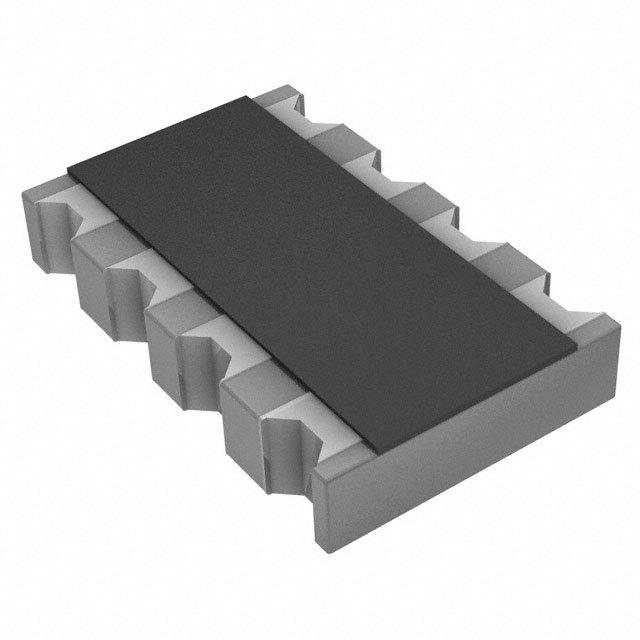

Downsize multiple resistors onto a single chip with the resistor array, developed by . This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. This product"s 4 resistors have a value of 100K Ohm. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 3.2 mm long, 0.53 mm tall and 1.6 mm deep. This product"s terminal pitch is 0.8 mm. The 742C083104JP part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. It has a tolerance of 5%.
容差 ±5 %
额定功率 0.25 W
耗散功率 0.063 W
电阻 100 kΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.53 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
