742C083560JP

742 系列 0603 0.063 W 56 Ohm ±5 % 50 V 表面贴装 贴片电阻 阵列

56 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络，阵列 ±200ppm/°C 1206（3216 公制），凹面，长边端子

得捷:
RES ARRAY 4 RES 56 OHM 1206

立创商城:
56Ω ±5%

艾睿:

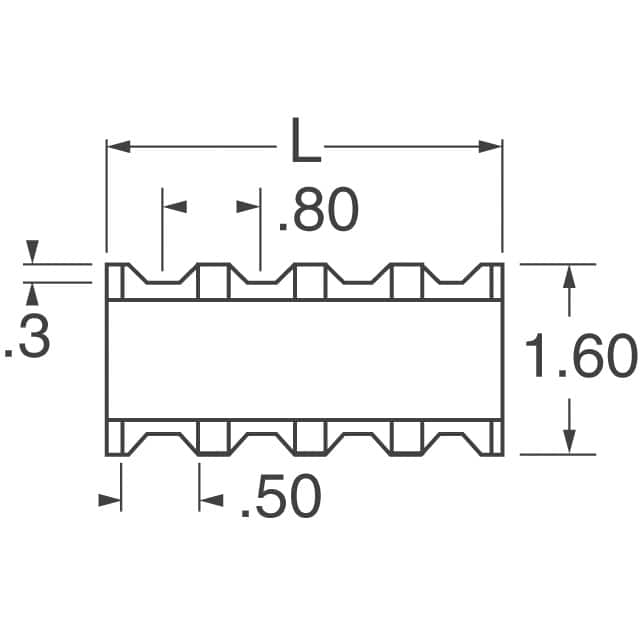

Use this 742C083560JP resistor array from CTS to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 56 Ohm. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology. This product is 3.2 mm long, 0.53 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. The 742C083560JP part has a concave termination style. It has a tolerance of 5%.

Jameco:
Resistor Thick Film Array 1206 56 Ohm 5% 1/4 Watt 200ppm °C Isolated 8-Pin Concave Surface Mount Tape and Reel

Chip1Stop:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R

Verical:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±200ppm/C ISOL 8-Pin 12064 X 0603 Concave SMD Medical T/R

Online Components:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R

Electro Sonic:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R
