0603 0.47Ω ±5% 0.1W1/10W ±300ppm/℃
470 ±5% 0.1W,1/10W 芯片 0603(1608 公制) 电流检测 厚膜
得捷:
RES 0.47 OHM 5% 1/10W 0603
艾睿:

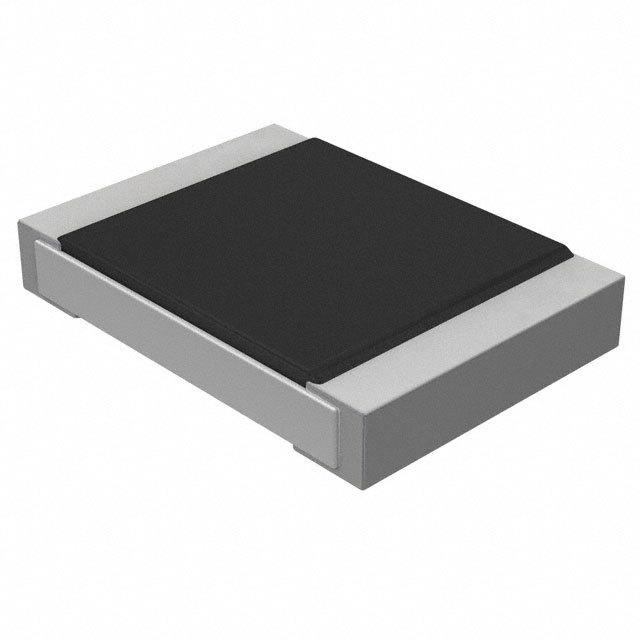

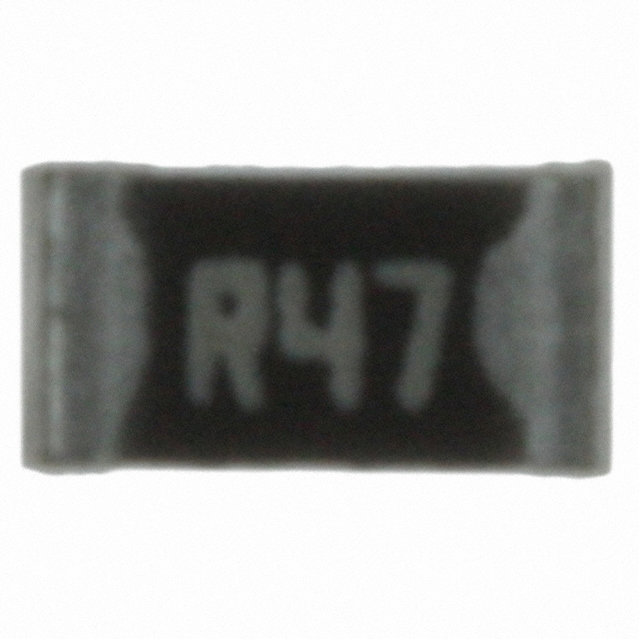

This is a 73L2R47J fixed single surface-mount resistor from CTS. This product has a resistance value of 470m Ohm. This durable part has a power rating of 0.1 1/10 W. It is also complete with current sensing technology. Its temperature coefficient is ±300 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes thick film technology. It has a tolerance of 5%. This product is 1.6 mm long, 0.5 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 125 °C.
Verical:
Res Thick Film 0603 0.47 Ohm 5% 0.1W1/10W ±300ppm/C Pad SMD T/R
Online Components:
Res Thick Film 0603 0.47 Ohm 5% 0.1W1/10W ±300ppm/°C Pad SMD T/R
Electro Sonic:
Res Thick Film 0603 0.47 Ohm 5% 0.1W1/10W ±300ppm/°C Pad SMD T/R
容差 ±5 %
额定功率 0.1 W
产品系列 73Lx
电阻 470 mΩ
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.5 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
温度系数 ±300 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533100042
