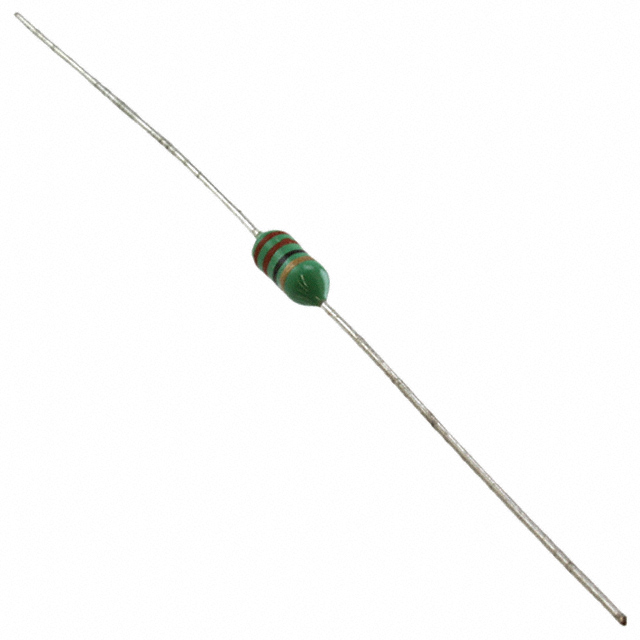

78F331J-RC

保形涂层RF扼流圈 Conformal Coated RF Choke

330 µH 无屏蔽 绕线 器 100 mA 11.1 欧姆最大 轴向

立创商城:
330uH ±5% 100mA 11.1Ω

得捷:
FIXED IND 330UH 100MA 11.1OHM TH

e络盟:
高频电感器, 78F Series, 330 µH, 100 mA, 11.1 ohm, ± 5%, 3.4 MHz

艾睿:
This rf choke 78F331J-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 7.11 mm long with a diameter of 2.79 mm. It has a tolerance of 5%. This device utilizes bobbin core technology. This leaded inductor has a maximum DC current of 100m A with a maximum resistance of 11.1 Ohm. It has an inductance of 330u H. Its test frequency is 790K Hz, while its minimum self-resonant frequency is 3.4M Hz.

安富利:
Ind RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA AXL Bag

Chip1Stop:
RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA 11.1Ohm DCR AXL Bag

Verical:
RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA 11.1Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  78F331J-RC  Axial Leaded High Frequency Inductor, RF Choke, 78F Series, 330 µH, 100 mA, 11.1 ohm, ± 5%, 3.4 MHz

MASTER:
RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA 11.1Ohm DCR AXL Bag

Online Components:
RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA 11.1Ohm DCR AXL Bag

Electro Sonic:
RF Choke Bobbin Core 330uH 5% 790KHz 60Q-Factor Ferrite 100mA 11.1Ohm DCR AXL Bag
