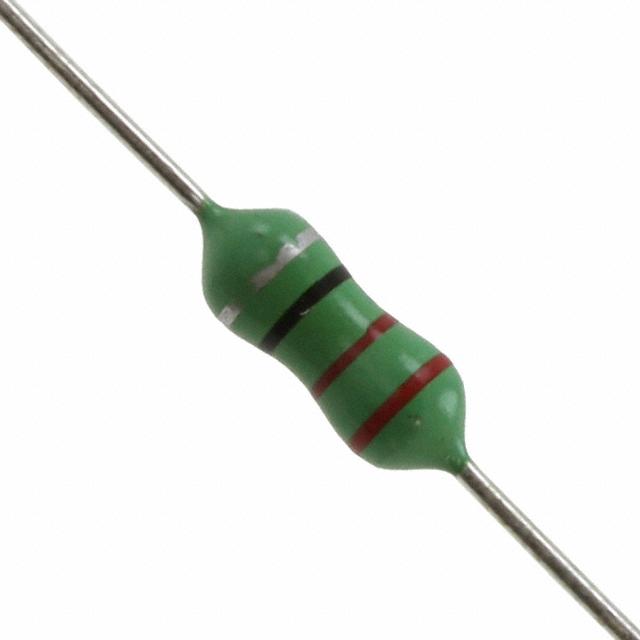

77F470J-TR-RC

轴向引线高频电感器, 77F Series, 47 µH, 340 mA, 1.3 ohm, ± 5%, 6.3 MHz

* Formerly model * Current rating up to 920 mA * Inductance range: 1.0 μH to 1,000 μH * RoHS compliant

得捷:
FIXED IND 47UH 340MA 1.3 OHM TH

立创商城:
47uH ±5% 340mA 1.3Ω

e络盟:
高频电感器, 77F Series, 47 µH, 340 mA, 1.3 ohm, ± 5%, 6.3 MHz

艾睿:
This rf choke 77F470J-TR-RC leaded inductor from Bourns is convenient and easily removable. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 5%. This leaded inductor has a maximum DC current of 340m A with a maximum resistance of 1.3 Ohm. This device utilizes bobbin core technology. This product is 10.41 mm long with a diameter of 3.99 mm. It has an inductance of 47u H. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 6.3M Hz.

安富利:
Ind RF Choke Bobbin Core 47uH 5% 2.52MHz 45Q-Factor Ferrite 340mA AXL T/R

Verical:
RF Choke Bobbin Core 47uH 5% 2.52MHz 45Q-Factor Ferrite 0.34A 1.3Ohm DCR AXL T/R

MASTER:
RF Choke Bobbin Core 47uH 5% 2.52MHz 45Q-Factor Ferrite 340mA 1.3Ohm DCR AXL T/R

Online Components:
RF Choke Bobbin Core 47uH 5% 2.52MHz 45Q-Factor Ferrite 340mA 1.3Ohm DCR AXL T/R

Electro Sonic:
RF Choke Bobbin Core 47uH 5% 2.52MHz 45Q-Factor Ferrite 340mA 1.3Ohm DCR AXL T/R
