741C083222JP

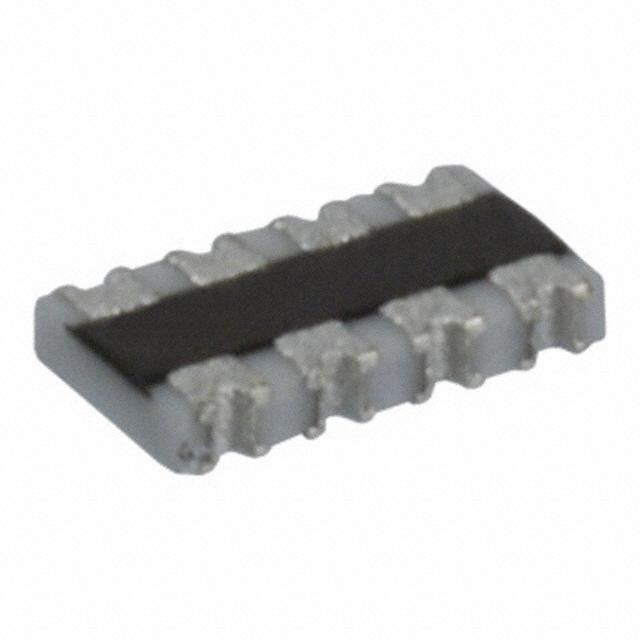

741C083222JP图片1
741C083222JP图片2
741C083222JP图片3
741C083222JP图片4
741C083222JP图片5
741C083222JP图片6
741C083222JP概述

Res Thick Film Array 2.2KΩ 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 08044 X 0402 Concave SMD T/R

Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 8-Pin 08044 X 0402 Concave SMD T/R


立创商城:
2.2kΩ ±5%


得捷:
RES ARRAY 4 RES 2.2K OHM 0804


艾睿:
Looking to save space and power in your circuit design? The 741C083222JP resistor array from CTS gives you a solution by combining multiple resistors into a single chip. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 2.2K Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 2 mm long, 0.38 mm tall and 1 mm deep. The 741C083222JP part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.5 mm. This device utilizes thick film technology. It has a tolerance of 5%.


安富利:
Res Thick Film Array 2.2K Ohm 5% 1/4W ±200ppm/°C ISOL Molded 8-Pin 08044 X 0402 Concave SMD Paper T/R


Chip1Stop:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ツア200ppm/C ISOL Molded 8-Pin 08044 X 0402 Concave SMD T/R


Verical:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/C ISOL Molded 8-Pin 08044 X 0402 Concave SMD T/R


Online Components:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 8-Pin 08044 X 0402 Concave SMD T/R


Electro Sonic:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 08044 X 0402 Concave SMD T/R


741C083222JP中文资料参数规格
技术参数

触点数 8

额定电压DC 25.0 V

容差 ±5 %

额定功率 0.25 W

电阻 2.2 KΩ

阻值偏差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装公制 1005

封装 0804

外形尺寸

长度 2 mm

宽度 1 mm

高度 0.38 mm

封装公制 1005

封装 0804

厚度 350 µm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533100020

数据手册

在线购买741C083222JP
型号: 741C083222JP
制造商: CTS 西迪斯
描述:Res Thick Film Array 2.2KΩ 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 08044 X 0402 Concave SMD T/R
