32位缓冲器/驱动器，具有三态输出 32-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 32 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 1.65V ~ 3.60V
输出接口数 32
通道数 32
位数 32
传送延迟时间 4.40 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 32
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 1.65 V
电源电压Min 3.6 V
安装方式 Surface Mount
引脚数 96

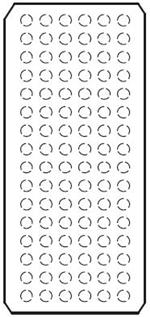

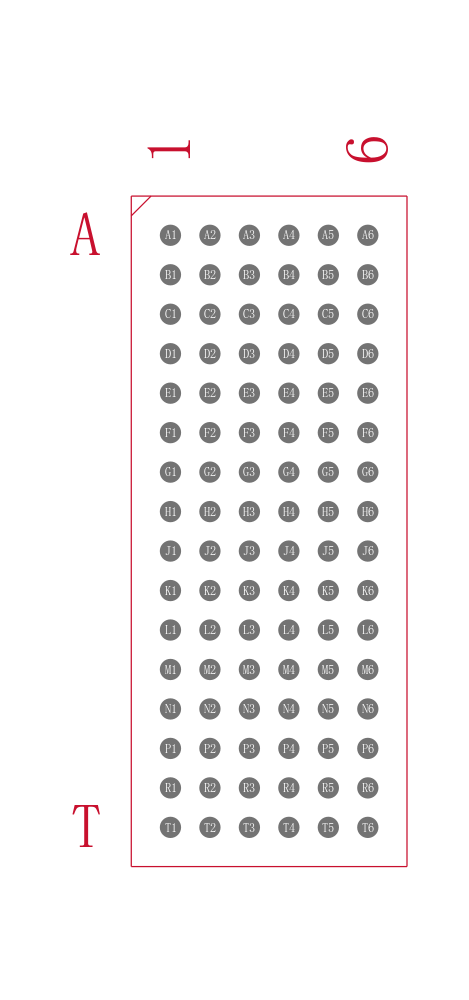

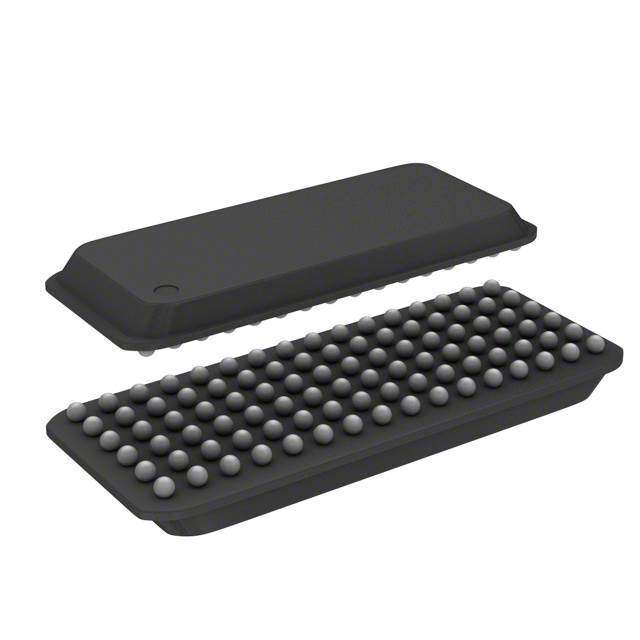

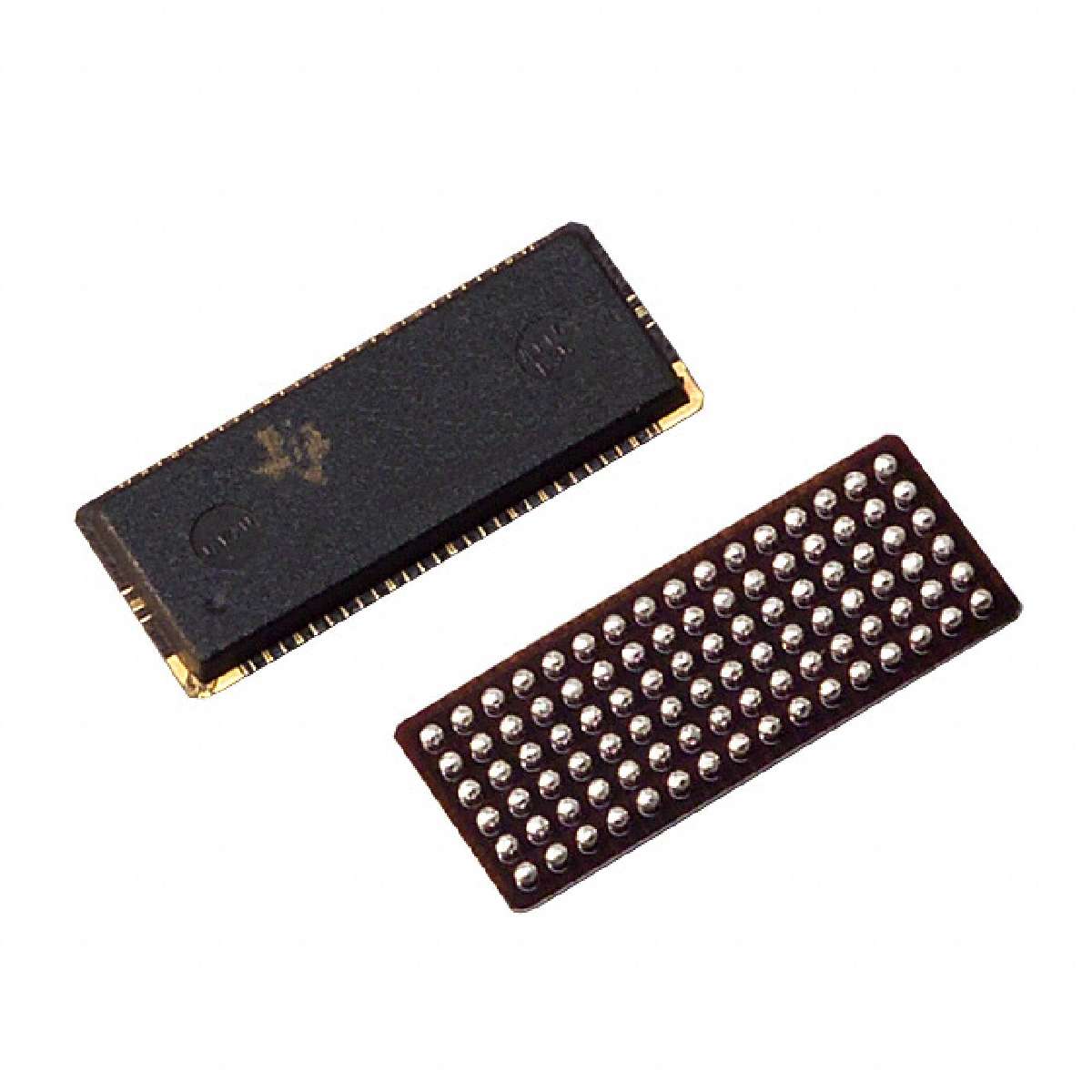

封装 BGA-96
高度 0.95 mm
封装 BGA-96
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
