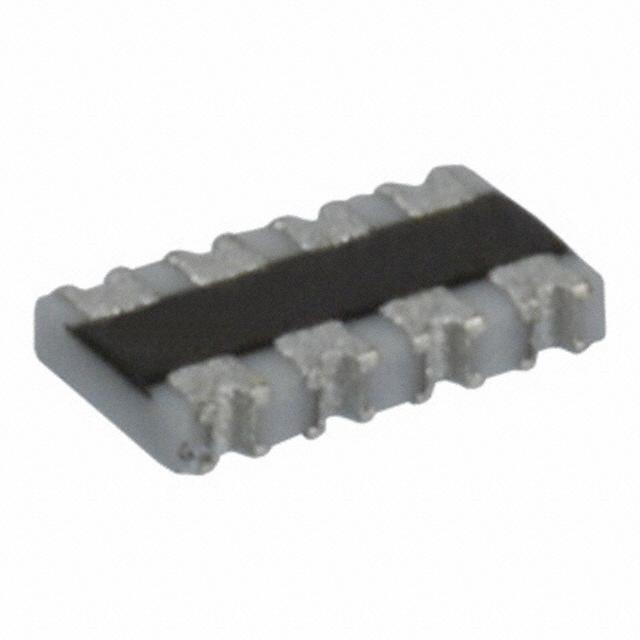

47 Ohm 5% .063W ±200ppm/°C ISOL 模压 8-引脚 08044 X 0402
Pack multiple resistors into a single chip with this resistor array from . This product"s 4 resistors have a value of 47 Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 0.5 mm. The 741C083470JP part has a concave termination style. This product is 2 mm long, 0.38 mm tall and 1 mm deep. This device is made with thick film technology.
触点数 8
额定电压DC 25.0 V
容差 ±5 %
额定功率 0.25 W
耗散功率 0.063 W
电阻 47 Ω
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 8
封装 0804
长度 2 mm
宽度 1 mm
高度 0.38 mm
封装 0804
厚度 350 µm
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
