74LVX 系列，Fairchild Semiconductors高级低电压 CMOS 逻辑 工作电压 +2.7 至 +5.5 兼容性：输入 LVTTL/TTL，输出 LVTTL ### 74LVX 系列
General Description
The LVX244 is an octal non-inverting buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density. The inputs tolerate up to 7V allowing interface of 5V systems to 3V systems.
Features
■ Input voltage translation from 5V to 3V
■ Ideal for low power/low noise 3.3V applications
■ Guaranteed simultaneous switching noise level and dynamic threshold performance
电源电压DC 2.00V min
输出接口数 8
输出电流 4 mA
通道数 8
针脚数 20
位数 8
耗散功率 180 mW
输出电流Max 4 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 180 mW
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

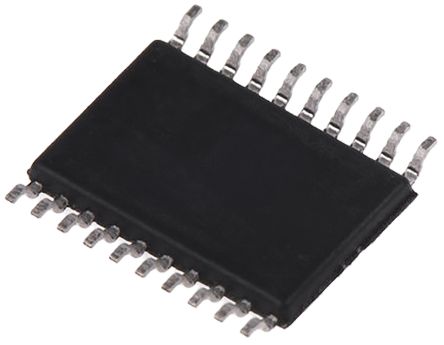

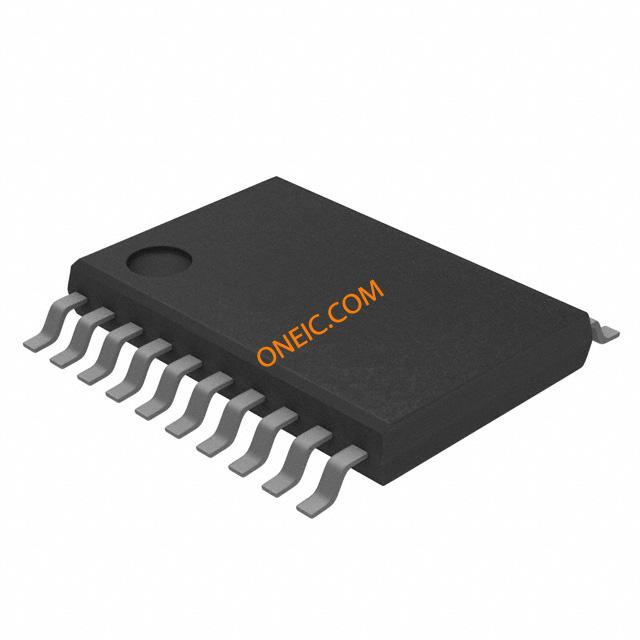

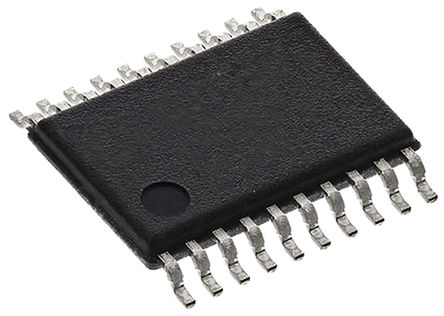

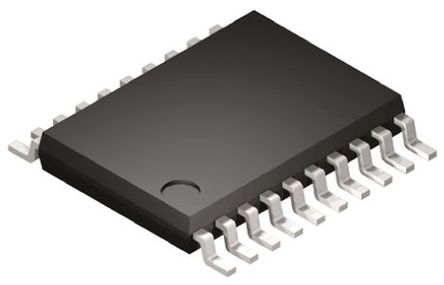

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
