低压四路缓冲带5V容限输入和输出 Low Voltage Quad Buffer with 5V Tolerant Inputs and Outputs
By driving the input to the transmission line this buffer and line driver by Semiconductor will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 4 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
电源电压DC 3.30 V
输出接口数 4
通道数 4
位数 6
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

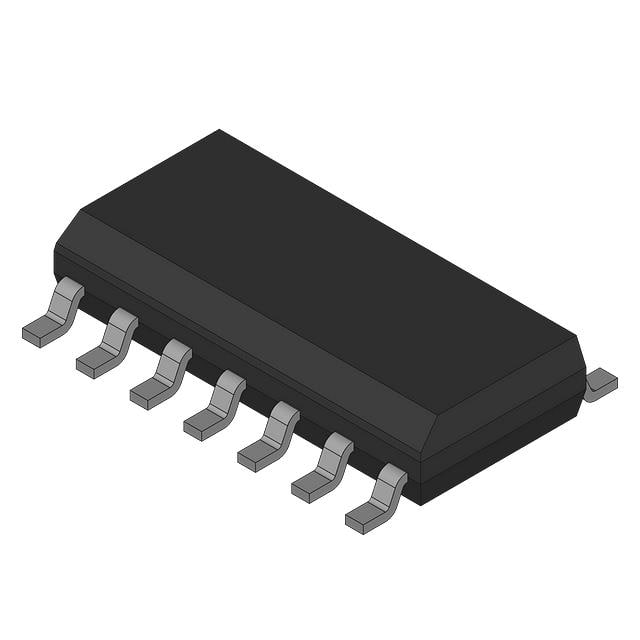

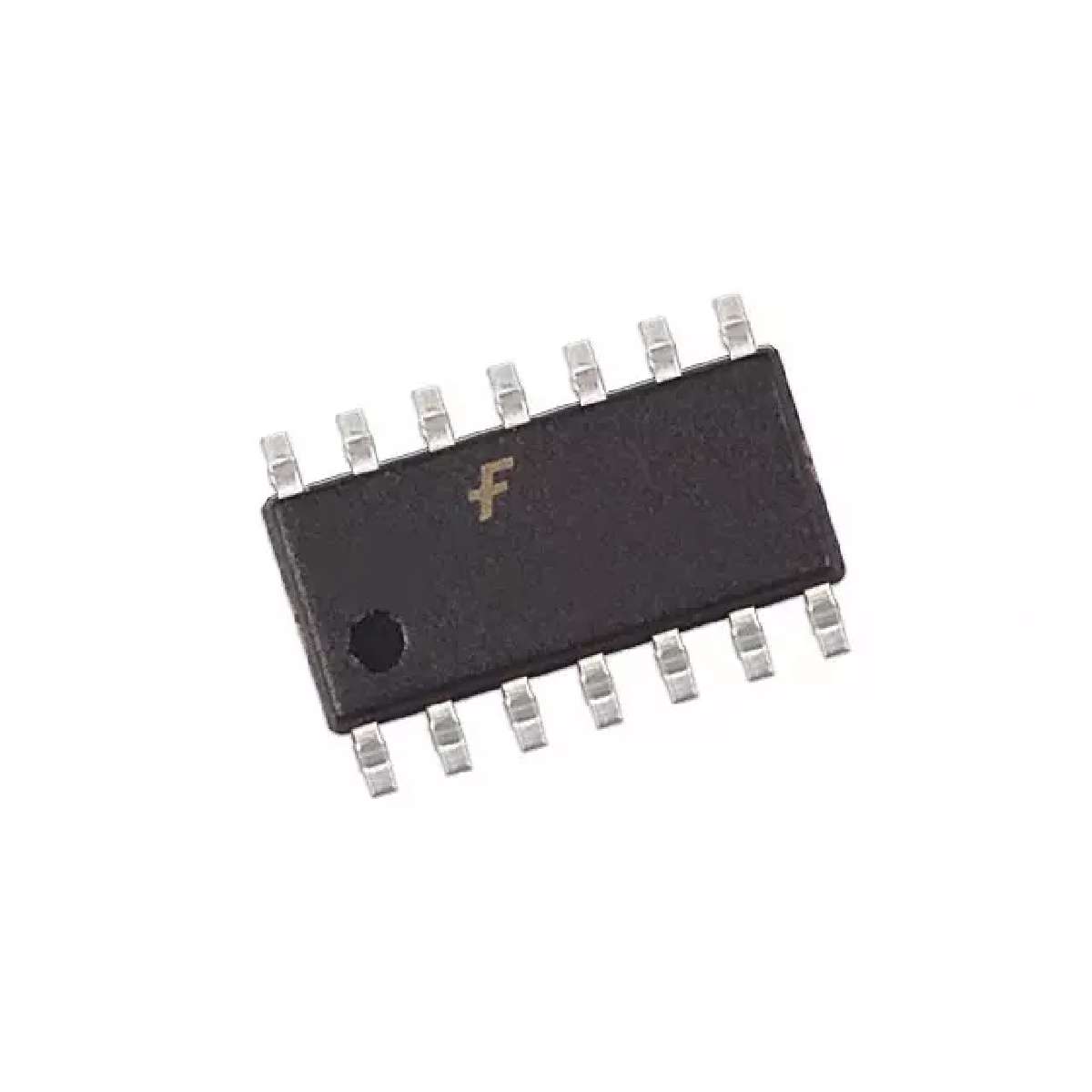

封装 SOP-14
长度 10.2 mm
宽度 5.3 mm
高度 1.8 mm
封装 SOP-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
