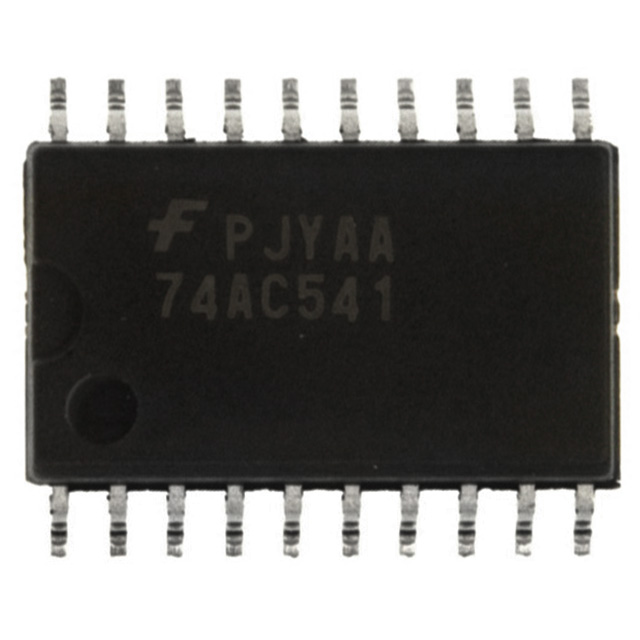

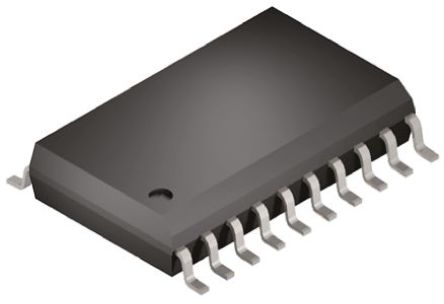

FAIRCHILD SEMICONDUCTOR 74AC541SC 缓冲器/线路驱动器, 非反相, 3态, 8门, 1输入, 2V至6V, SOIC-20
The is an octal Buffer/Line Driver with 3-state outputs. It is designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers. This device is similar in function to the 74AC244 and 74ACTC244 while providing flow-through architecture inputs on opposite side from outputs. This pin-out arrangement makes this device especially useful as an output port for microprocessors, allowing ease of layout and greater PC board density.
电源电压DC 5.00 V, 6.00 V max
输出接口数 8
通道数 8
针脚数 20
位数 8
逻辑门个数 8
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 13 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Rail
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
