3.3 -V ABT 16位缓冲器/驱动器，具有三态输出 3.3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
电源电压DC 2.70V ~ 3.60V
输出接口数 16
通道数 16
位数 16
电压波节 3.30 V, 2.70 V
静态电流 5 mA
输出电流驱动 -427 µA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 56

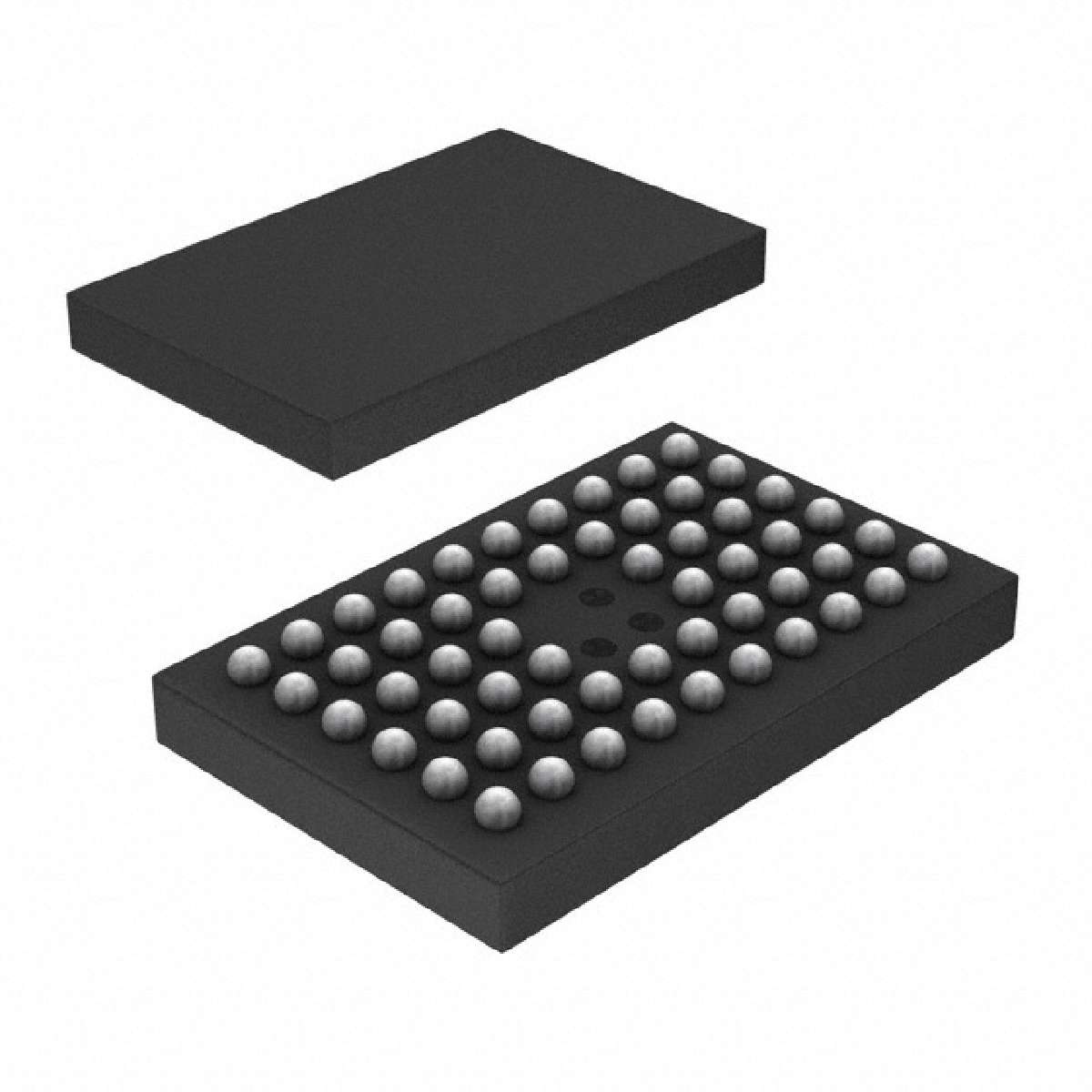

封装 BGA-56
长度 7 mm
宽度 4.5 mm
高度 0.65 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
