74LVC1G126DCKRE4概述

具有三态输出单总线缓冲器门 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT

缓冲器,非反向 元件 1 位每元件 三态 Output SC-70-5


得捷:
IC BUFF/DVR TRI-ST N-INV SC70-5


艾睿:
By driving the input to the transmission line this 74LVC1G126DCKRE4 buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V. It has 1 channels per chip.


安富利:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R


Chip1Stop:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R


Verical:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R


Newark:
Buffer, 74LVC1G126, 5.5 V to 1.65 V, SC-70-5


74LVC1G126DCKRE4中文资料参数规格
技术参数

电源电压DC 1.65V min

输出接口数 1

通道数 1

位数 1

传送延迟时间 4.00 ns

逻辑门个数 1

输出电流驱动 -1.00 mA

输入数 1

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SC-70-5

外形尺寸

封装 SC-70-5

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

74LVC1G126DCKRE4引脚图与封装图
74LVC1G126DCKRE4引脚图
74LVC1G126DCKRE4封装图

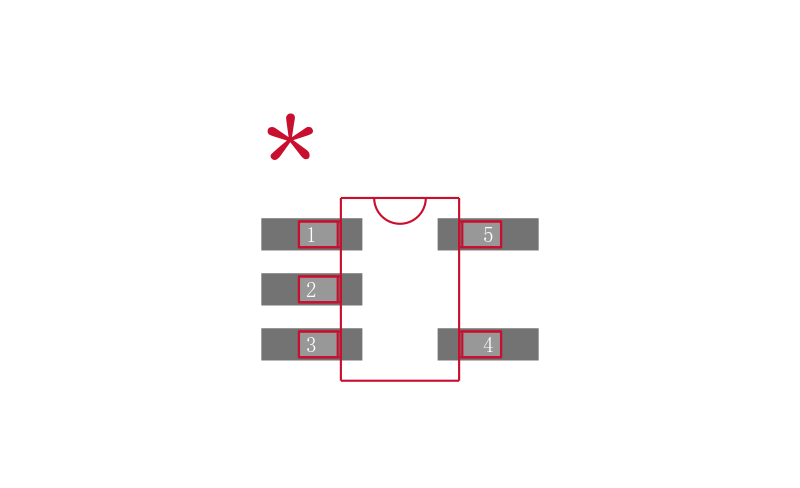

74LVC1G126DCKRE4封装焊盘图
