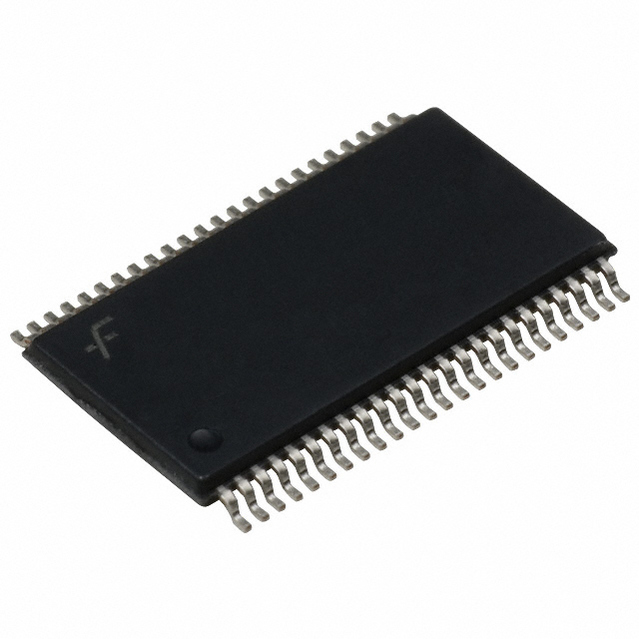

74ALVC16244MTDX 是一款低压16 位 48P TSSOP 缓冲器/线路驱动器
General Description
The ALVC16244 contains sixteen non-inverting buffers with 3-STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/ receiver. The device is nibble 4-bit controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.
Features
■1.65V–3.6V VCC supply operation
■3.6V tolerant inputs and outputs
■tPD
3.0 ns max for 3.0V to 3.6V VCC
3.5 ns max for 2.3V to 2.7V VCC
6.0 ns max for 1.65V to 1.95V VCC
■Power-off high impedance inputs and outputs
■Supports live insertion and withdrawal
■Uses patented noise/EMI reduction circuitry
■Latch-up conforms to JEDEC JED98
■ESD performance:
Human body model !2000V
Machine model !200V
■Also packaged in plastic Fine-Pitch Ball Grid Array FBGA
