低电压16位缓冲器/线路与Bushold和26з系列电阻的输出驱动器 Low Voltage 16-Bit Buffer/Line Driver with Bushold and 26з Series Resistors in Outputs
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Semiconductor. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
电源电压DC 3.30 V
输出接口数 16
通道数 16
位数 16
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 48

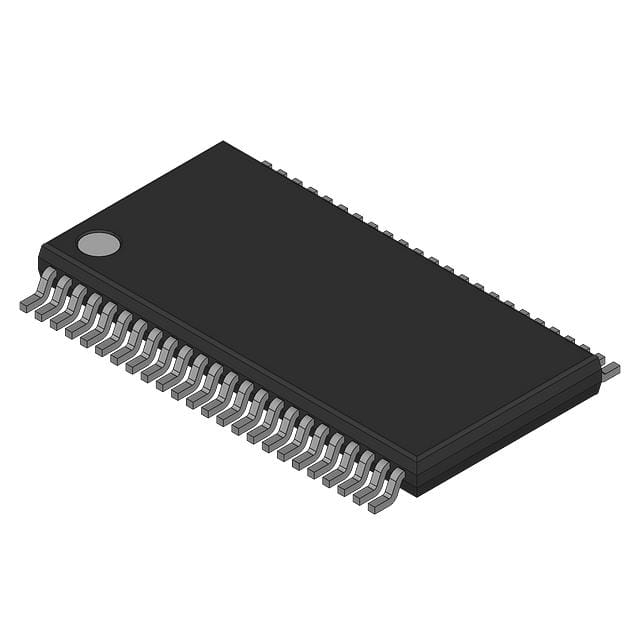

封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 0.9 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
