具有三态输出单总线缓冲器门 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
Description

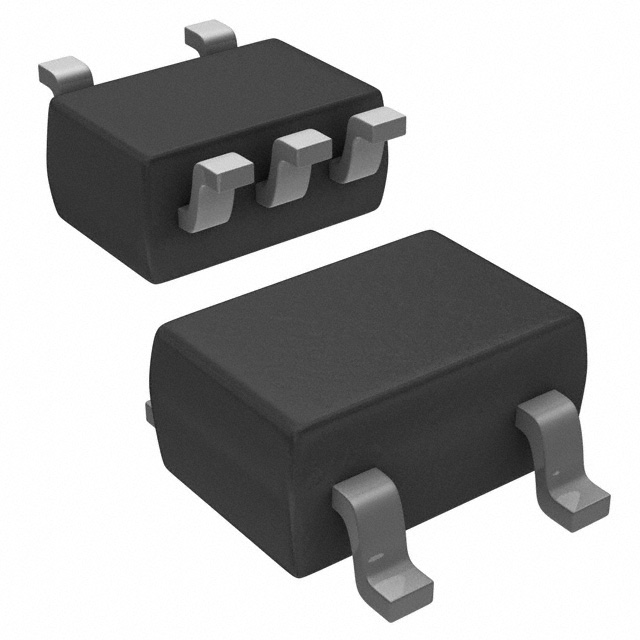

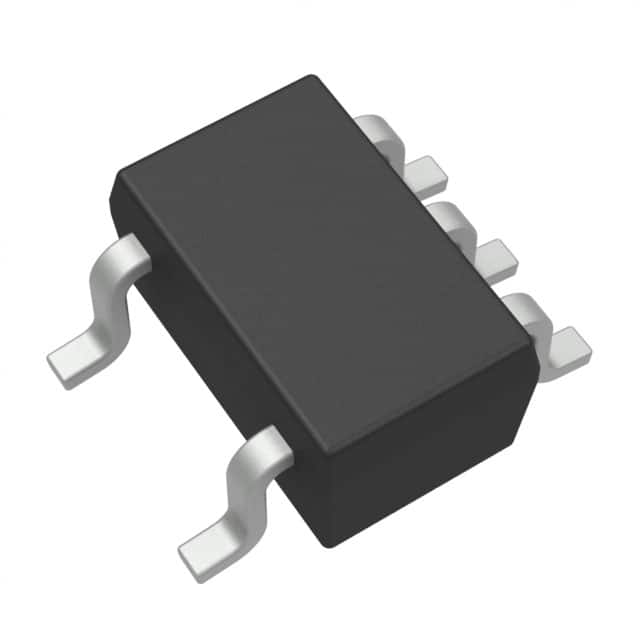

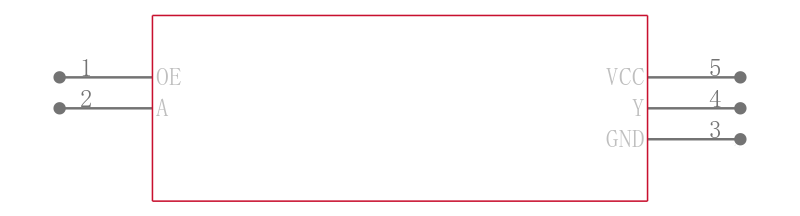

The SN74AHCT1G126 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable OE input is low. When OE is high, true data is passed from the A input to the Y output.
Features
• Operating Range of 4.5 V to 5.5 V
• Max tpd of 6 ns at 5 V
• Low Power Consumption, 10-µA Max ICC
• ±8-mA Output Drive at 5 V
• Inputs are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model
– 200-V Machine Model
– 1000-V Charged-Device Model
Applications
• Motor Controls: AC Induction
• Graphics Cards
• Advanced Driver Assistance Systems ADAS
• Motor Drives & Controls
• DLP Front Projection Systems
• Server Motherboards
