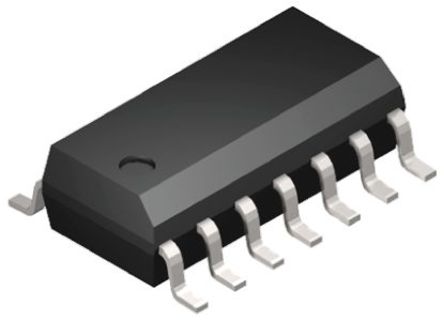

74VHCT 系列,Fairchild Semiconductor### 74VHCT 系列
Store state information for later use by using the Semiconductor flip flop device. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 2 channels per chip.
频率 80 MHz
电源电压DC 5.00 V
电路数 2
时钟频率 140 MHz
位数 2
极性 Non-Inverting, Inverting
输入电容 4 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
