CMOS 八 双稳态触发器 带 3 态输出
Are you looking to store information at a basic level? The flip flop device from Semiconductor can easily save state information. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 75 MHz
电源电压DC 5.00 V
输出接口数 8
电路数 8
通道数 8
时钟频率 130 MHz
位数 8
极性 Non-Inverting
输入电容 4 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

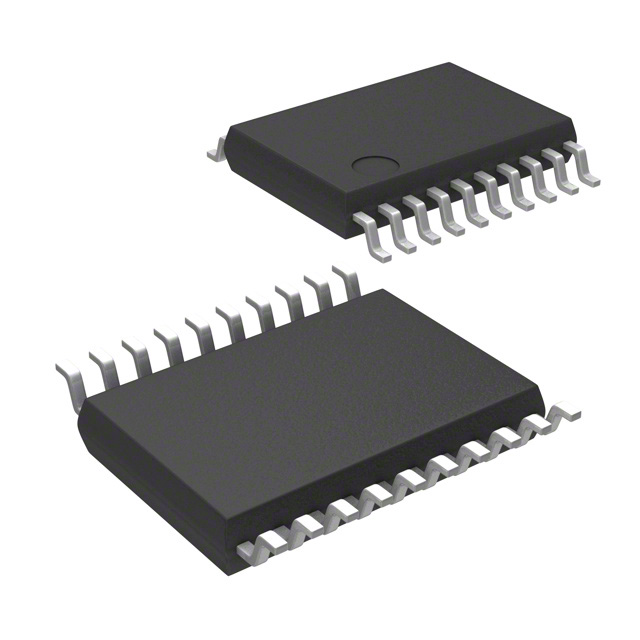

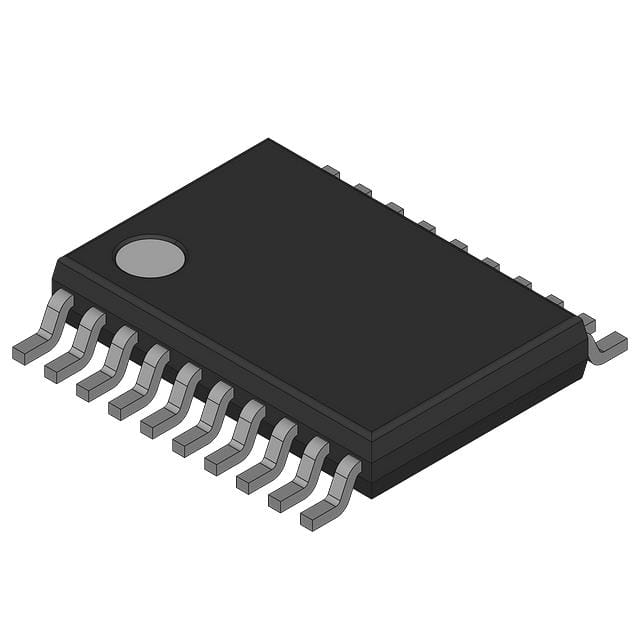

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
