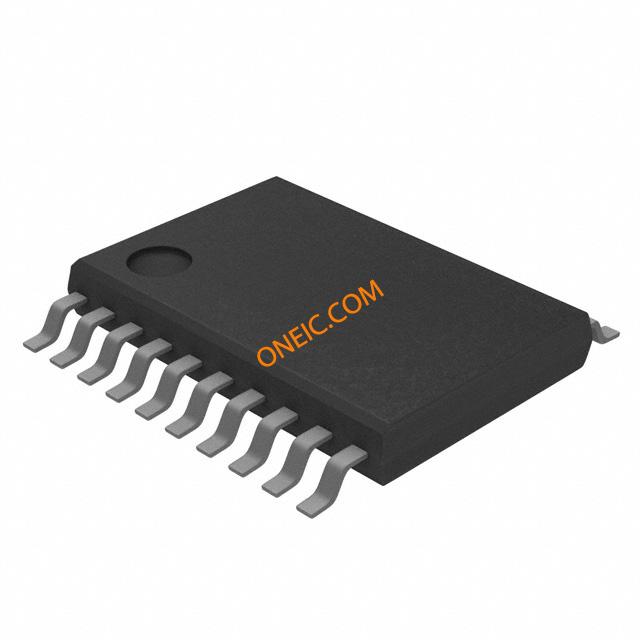

74LVTH373MTCX

3态输出

General Description

The LVT373 and LVTH373 consist of eight latches with 3-STATE outputs for bus organized system applications. The latches appear transparent to the data when Latch Enable LE is HIGH. When LE is LOW,

Features

■Input and output interface capability to systems at 5V VCC

■Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs 74LVTH373, also available without bushold feature 74LVT373.

■Live insertion/extraction permitted

■Power Up/Down high impedance provides glitch-free bus loading

■Outputs source/sink −32 mA/+64 mA

■Functionally compatible with the 74 series 373

■ESD performance:

Human-body model >2000V

Machine model >200V

Charged-device model >1000V
