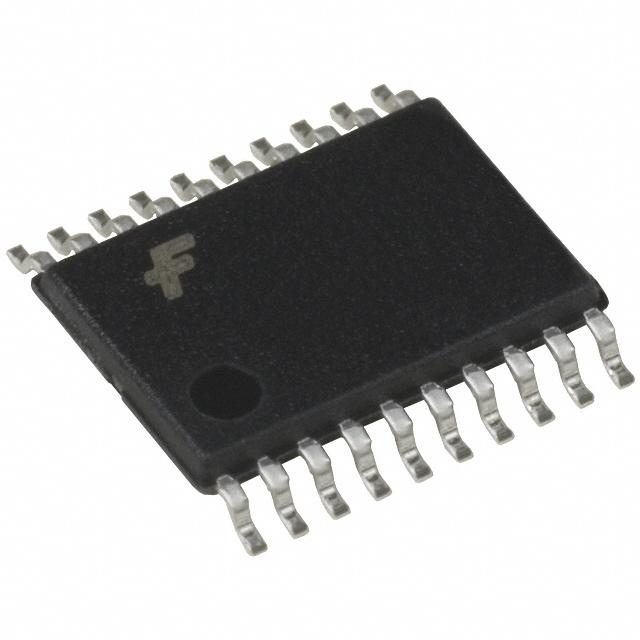

74LVTH374MTCX

D 型 双稳态触发器 带 3 态输出

General Description

The LVT374 and LVTH374 are high-speed, low-power octal D-type flip-flops featuring separate D-type inputs for each flip-flop and 3-STATE outputs for bus-oriented applications. A buffered Clock CP and Output Enable OE are common to all flip-flops.

The LVTH374 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

Features

■ Input and output interface capability to systems at 5V VCC

■ Bus-Hold data inputs eliminate the need for external pull-up resistors to hold unused inputs 74LVTH374, also available without bushold feature 74LVT374

■ Live insertion/extraction permitted

■ Power Up/Down high impedance provides glitch-free bus loading

■ Outputs source/sink –32mA/+64mA

■ Functionally compatible with the 74 series 374

■ Latch-up performance exceeds 500mA

■ ESD performance:

   – Human-body model > 2000V

   – Machine model > 200V

   – Charged-device model > 1000V
