74LCX16374MTDX

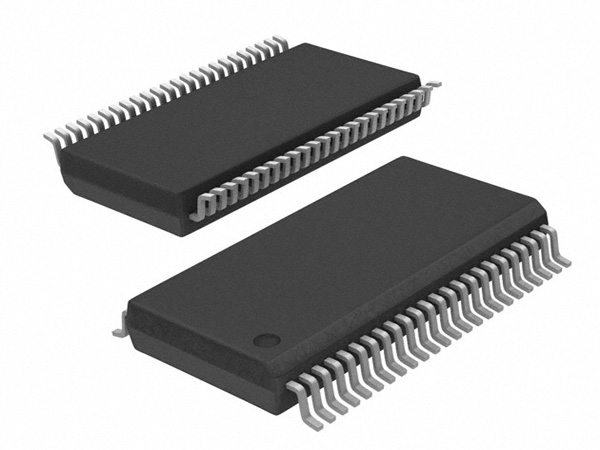

FAIRCHILD SEMICONDUCTOR  74LCX16374MTDX  触发器, 三态非反相, 正沿, D, 170 MHz, TSSOP, 48 引脚

The is a 16-bit D-type Flip-flop with 5V tolerant inputs and outputs. It is intended for bus oriented applications. The device is byte controlled. A buffered clock and OE\ are common to each byte and can be shorted together for full 16-bit operation. The LCX16374 is designed for low voltage 2.5 or 3.3V VCC applications with capability of interfacing to a 5V signal environment. The LCX16374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

Power down high impedance inputs and outputs

.

Supports live insertion/withdrawal

.

Uses proprietary noise/EMI reduction circuitry

.

Latch-up performance exceeds 500mA

.

±24mA Output drive current
