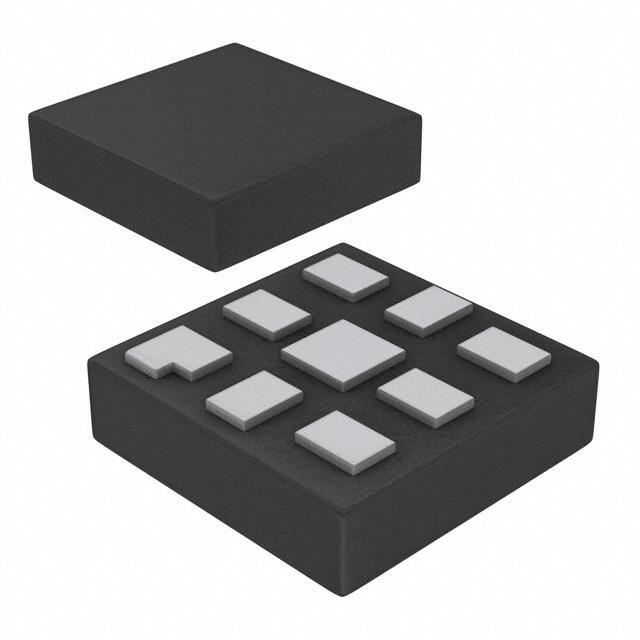

74LVC3G07GM,125图片2
74LVC3G07GM,125图片3
74LVC3G07GM,125图片4

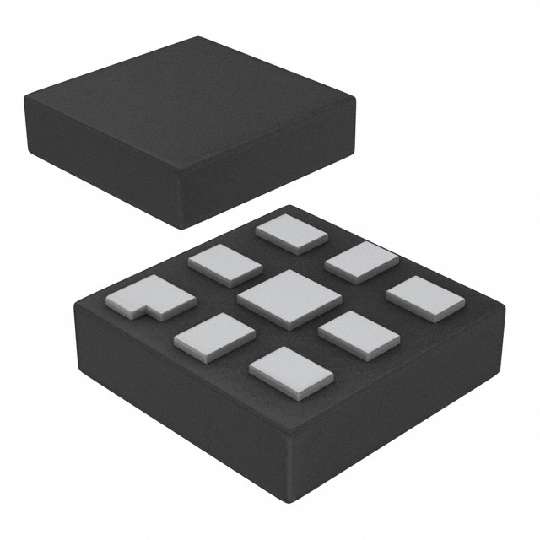

74LVC3G07GM,125图片5
74LVC3G07GM,125图片6
74LVC3G07GM,125图片7
74LVC3G07GM,125图片8
74LVC3G07GM,125概述

74LVC 系列 5.5 V 开漏输出 三通道 缓冲器 表面贴装 - XQFN-8

General description

The 74LVC3G07 provides three non-inverting buffers. The output of the device is an open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment.

Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Features

■ Wide supply voltage range from 1.65 V to 5.5 V

■ 5 V tolerant input/output for interfacing with 5 V logic

■ High noise immunity

■ Complies with JEDEC standard:

  ◆ JESD8-7 1.65 V to 1.95 V

  ◆ JESD8-5 2.3 V to 2.7 V

  ◆ JESD8-B/JESD36 2.7 V to 3.6 V.

■ ESD protection:

  ◆ HBM EIA/JESD22-A114-B exceeds 2000 V

  ◆ MM EIA/JESD22-A115-A exceeds 200 V.

■ −24 mA output drive VCC = 3.0 V

■ CMOS low power consumption

■ Latch-up performance exceeds 250 mA

■ Direct interface with TTL levels

■ Inputs accept voltages up to 5 V

■ Multiple package options

■ Specified from −40 °C to +85 °C and −40 °C to +125 °C.

74LVC3G07GM,125中文资料参数规格
技术参数

输出接口数 3

通道数 3

输入数 3

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 XFQFN-8

外形尺寸

高度 0.45 mm

封装 XFQFN-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买74LVC3G07GM,125
型号: 74LVC3G07GM,125
制造商: NXP 恩智浦
描述:74LVC 系列 5.5 V 开漏输出 三通道 缓冲器 表面贴装 - XQFN-8
