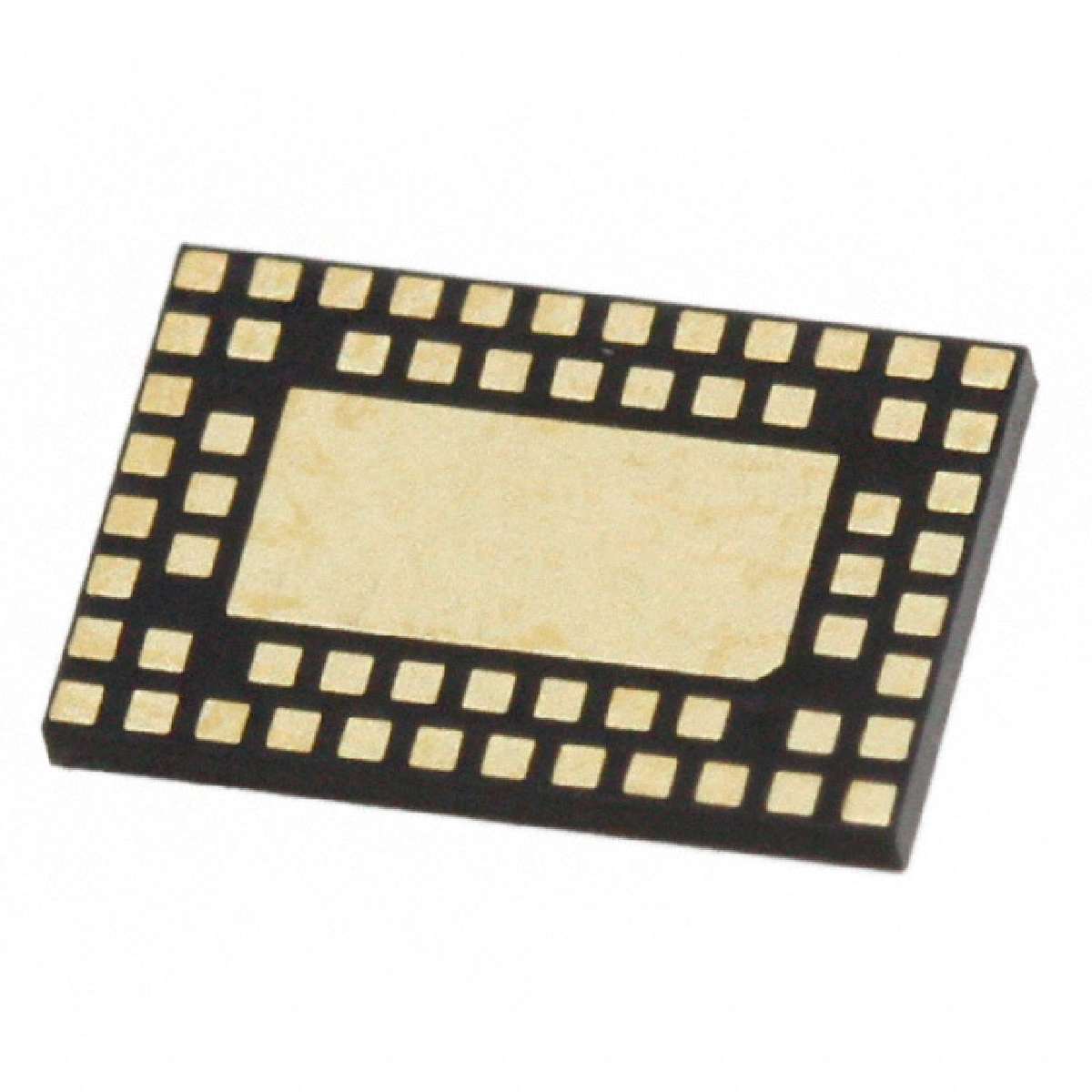

Buffer/Line Driver 16CH Non-Inverting 3-ST CMOS 60Pin HXQFN-U EP T/R
* Automotive product qualification in accordance with AEC-Q100 Grade 1 * Specified from -40 °C to +85 °C and from -40 °C to +125 °C * 5 V tolerant inputs/outputs for interfacing with 5 V logic * Wide supply voltage range from 1.2 V to 3.6 V * CMOS low power consumption * Multibyte flow-through standard pinout architecture * Low inductance multiple power and ground pins for minimum noise and groundbounce * Direct interface with TTL levels * High-impedance when VCC = 0 V * All data inputs have bus hold. 74LVCH16244A-Q100 only * Complies with JEDEC standard: * JESD8-7A 1.65 V to 1.95 V * JESD8-5A 2.3 V to 2.7 V * JESD8-C/JESD36 2.7 V to 3.6 V * ESD protection: * MIL-STD-883, method 3015 exceeds 2000 V * HBM JESD22-A114F exceeds 2000 V * MM JESD22-A115-A exceeds 200 V C = 200 pF, R = 0 Ω
