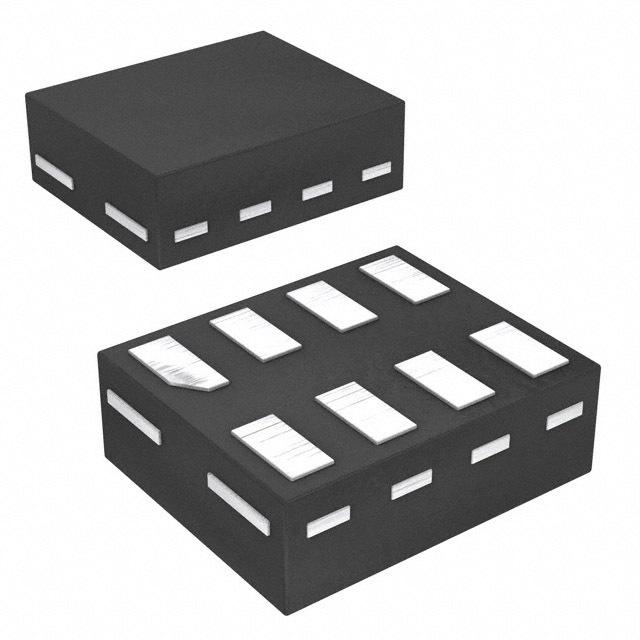

74LVC2T45GN,115

Bus XCVR Single 2CH 3-ST 8Pin XSON T/R

* Wide supply voltage range: * VCCA: 1.2 V to 5.5 V * VCCB: 1.2 V to 5.5 V * High noise immunity * Complies with JEDEC standards: * JESD8-7 1.2 V to 1.95 V * JESD8-5 1.8 V to 2.7 V * JESD8C 2.7 V to 3.6 V * JESD36 4.5 V to 5.5 V * ESD protection: * HBM JESD22-A114F Class 3A exceeds 4000 V * MM JESD22-A115-A exceeds 200 V * CDM JESD22-C101E exceeds 1000 V * Maximum data rates: * 420 Mbps 3.3 V to 5.0 V translation * 210 Mbps translate to 3.3 V * 140 Mbps translate to 2.5 V * 75 Mbps translate to 1.8 V * 60 Mbps translate to 1.5 V
