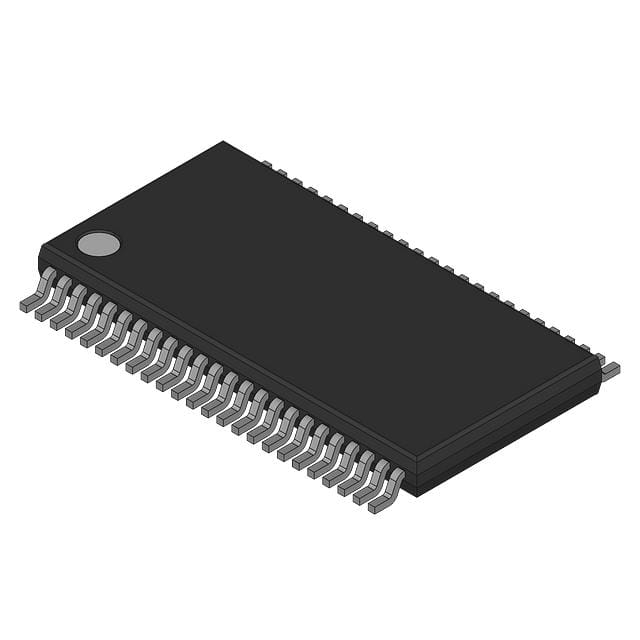

74LCX162374MTDX

16位D型触发器 16-Bit D-Type Flip-Flop

General Description

The LCX162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock CP and Output Enable OE are common to each byte and can be shorted together for full 16-bit operation.

The LCX162374 is designed for low voltage 2.5V or 3.3V VCC applications with capability of interfacing to a 5V signal environment. The 26Ω series resistor in the output helps reduce output overshoot and undershoot.

Features

■ 5V tolerant inputs and outputs

■ 2.3V–3.6V V

CC specifications provided

■ Equivalent 26Ω series resistor on outputs

■ 7.0 ns t

PD max VCC = 3.3V, 20 µA ICC max

■ Power down high impedance inputs and outputs

■ Supports live insertion/withdrawal Note 1

■ ±12 mA output drive VCC = 3.0V

■ Implements patented noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance:

  Human body model > 2000V

  Machine model > 200V

■ Also packaged in plastic Fine-Pitch Ball Grid Array FBGA Preliminary
