16位边沿触发D型触发器具有三态输出 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
频率 150 MHz
电源电压DC 2.00V ~ 3.60V
输出接口数 8
输出电流 24.0 mA
电路数 16
时钟频率 150 MHz
位数 16
传送延迟时间 7.50 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输入电容 5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 48

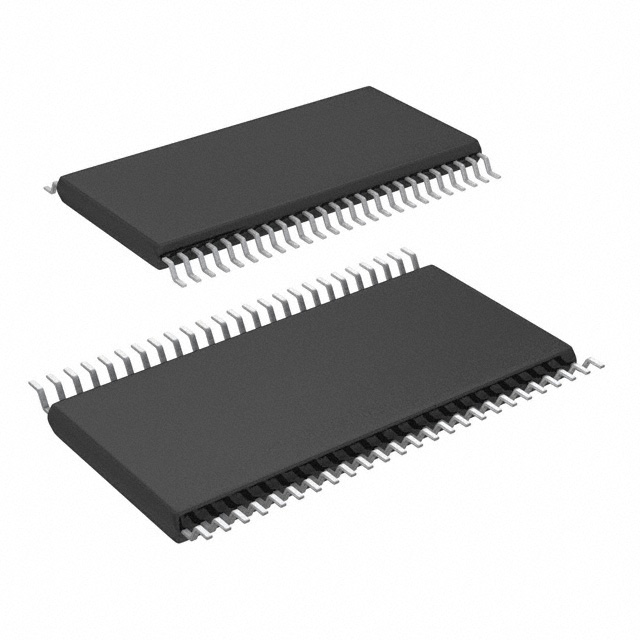

封装 TSSOP-48
封装 TSSOP-48
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
