可配置电压转换和三态输出的4位双电源总线收发器 4-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V ~ 3.60V
电路数 2
通道数 4

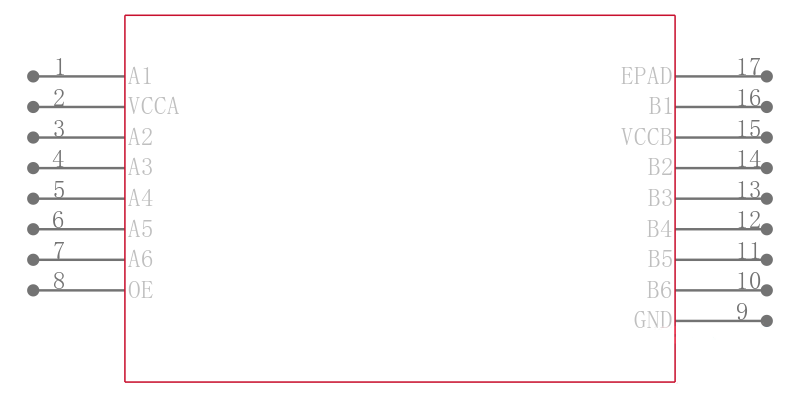

针脚数 16
位数 4
传送延迟时间 2.90 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 16

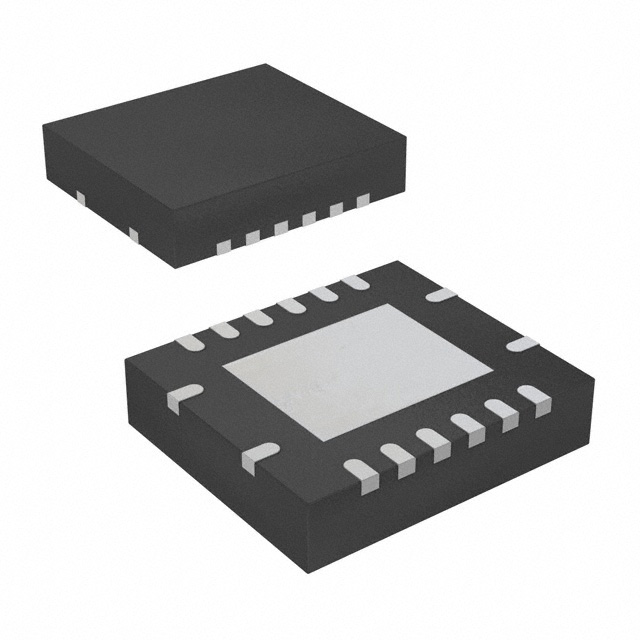

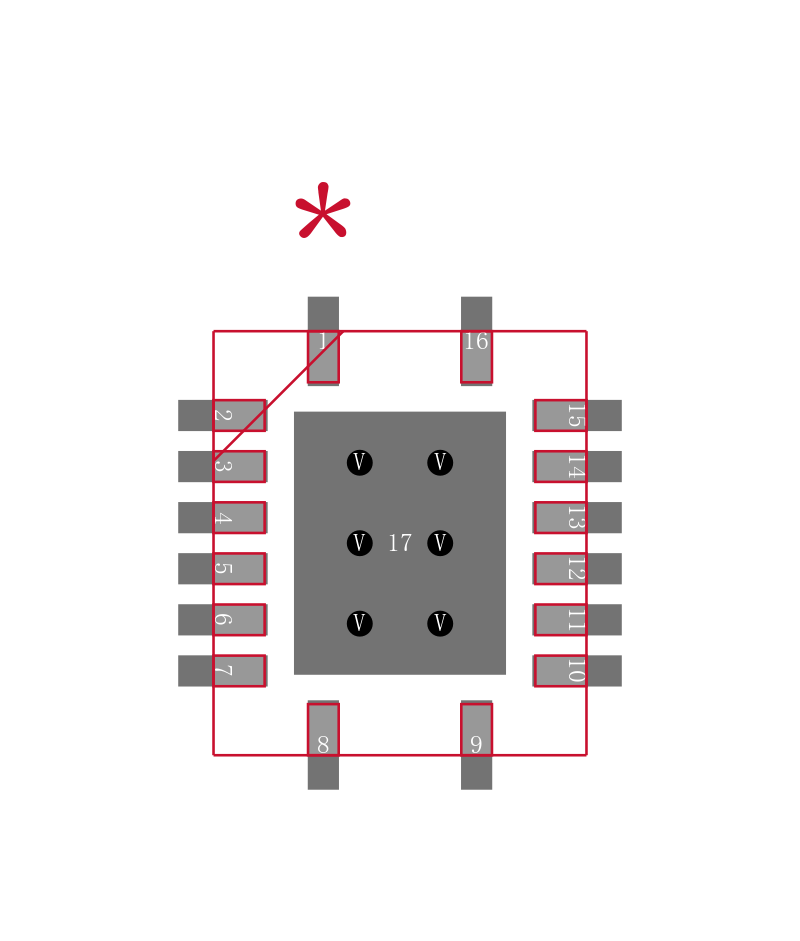

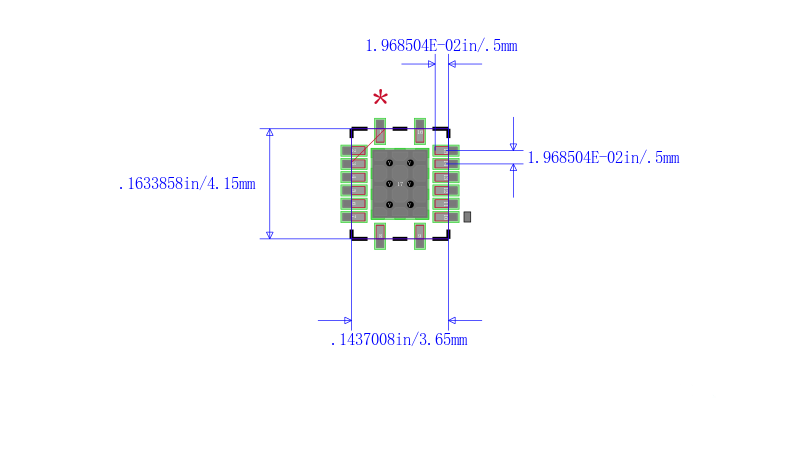

封装 VQFN-16
封装 VQFN-16
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
