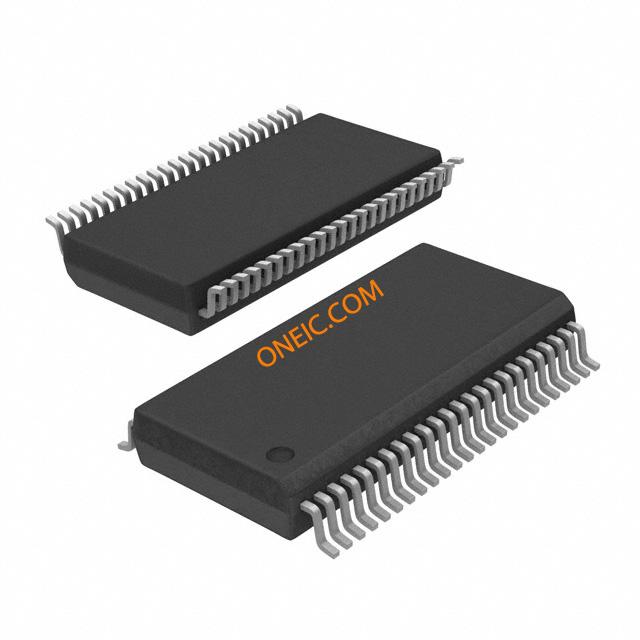

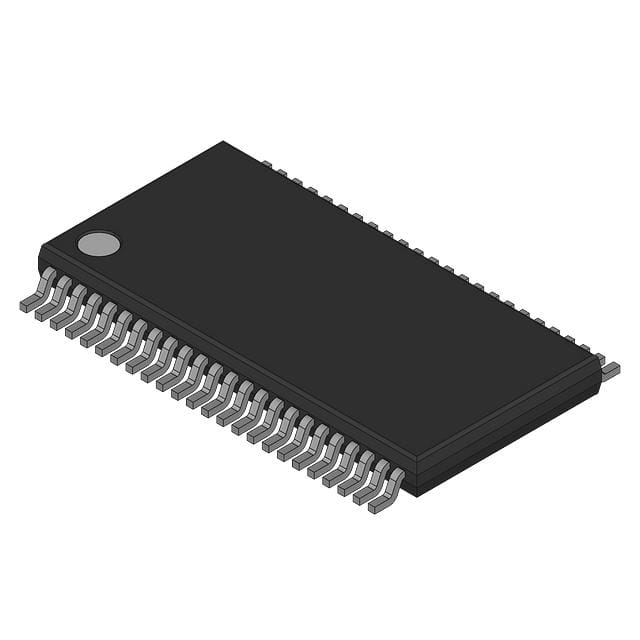

低电压16位缓冲器/线路与3.6V容限输入和输出驱动器 Low Voltage 16-Bit Buffer/Line Driver with 3.6V Tolerant Inputs and Outputs
General Description
The VCX16244 contains sixteen non-inverting buffers with 3-STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble 4-bit controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.
FeatuFeatures
■1.2V to 3.6V VCC supply operation
■3.6V tolerant inputs and outputs
■tPD
2.5 ns max for 3.0V to 3.6V VCC
■Power-off high impedance inputs and outputs
■Supports live insertion and withdrawal Note 1
■Static Drive IOH/IOL
r24 mA @ 3.0V VCC
■Uses patented noise/EMI reduction circuitry
■Latch-up performance exceeds 300 mA
■ESD performance:
Human body model !2000V
Machine model !200V
■Also packaged in plastic Fine-Pitch Ball Grid Array FBGA
