可配置电压转换和3态输出的16位双电源总线收发器 16-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
输出接口数 16
输出电流 32 mA
电路数 2
通道数 16
位数 16
传送延迟时间 6.00 ns
电压波节 1.80 V, 2.50 V, 3.30 V, 5.00 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 8
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 56

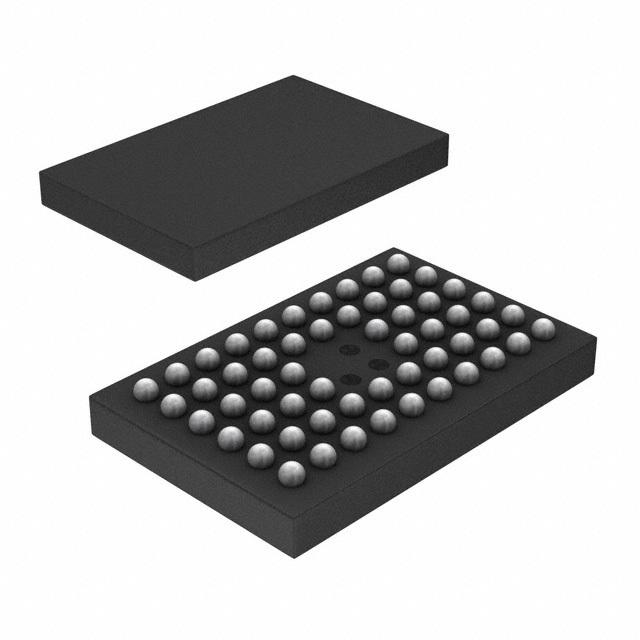

封装 BGA-56
高度 0.65 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
