3.3 V ABT 16BIT EDGE - 触发的D型触发器具有三态输出 3.3 V ABT 16BIT EDGE - TRIGGERED D TYPE FLIP FLOPS WITH 3 STATE OUTPUTS
Store state information by enabling this flip flop device from Texas Instruments. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
频率 160 MHz
电源电压DC 3.30 V, 3.60 V max
输出接口数 8
输出电流 12.0 mA
电路数 2
时钟频率 160 MHz
位数 16
极性 Non-Inverting
电压波节 3.30 V, 2.70 V
输入电容 3 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 54

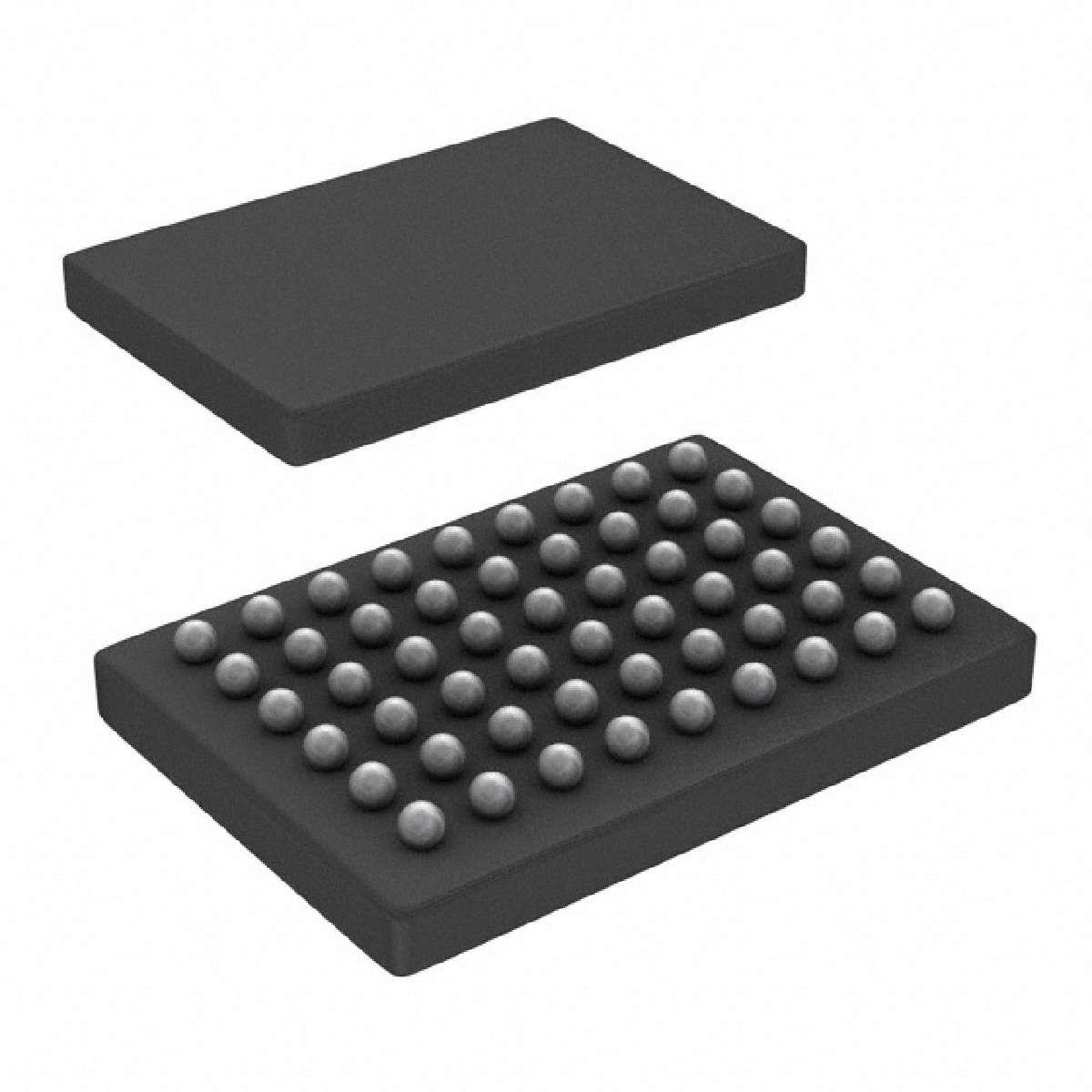

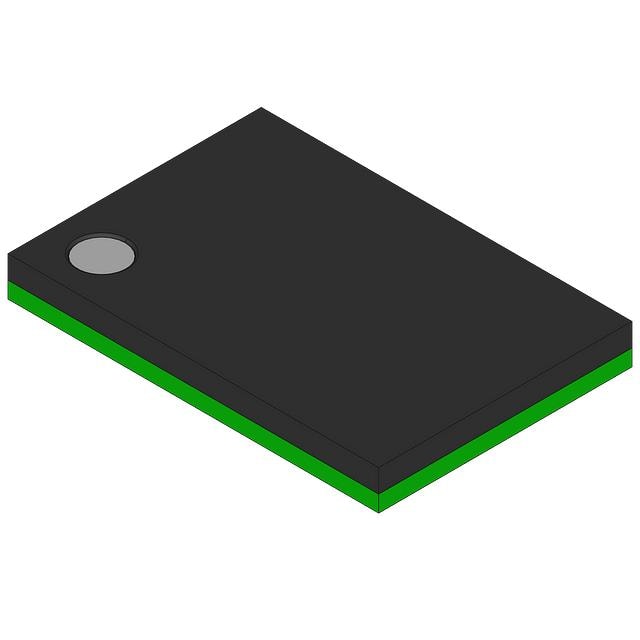

封装 BGA-54
宽度 5.5 mm
高度 0.8 mm
封装 BGA-54
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
