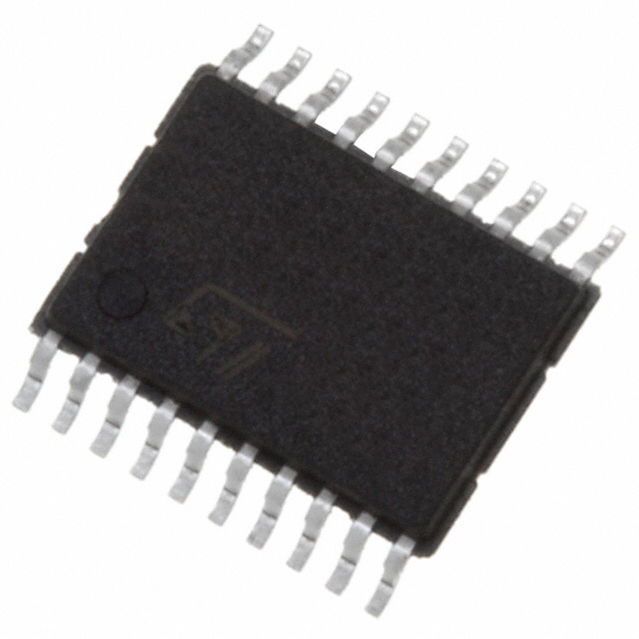

低压CMOS八路D型触发器(三态非INV )具有5V容限输入 LOW VOLTAGE CMOS OCTAL D-TYPE FLIP-FLOP 3-STATE NON INV. WITH 5V TOLERANT INPUTS
元件 D 型 位 正边沿 20-TSSOP(0.173",4.40mm 宽)
得捷:
IC FF D-TYPE SNGL 8BIT 20TSSOP
贸泽:
触发器 Octal "D" Flip-Flop
艾睿:
Think of STMicroelectronics&s; 74LVX574TTR flip flop device in the event you need to save or retrieve your circuit&s;s state information quickly. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. It has 8 channels per chip.
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R
频率 40 MHz
电源电压DC 3.30 V
输出接口数 8
电路数 8
时钟频率 75 MHz
位数 8
极性 Non-Inverting
输入电容 4 pF
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1 mm
封装 TSSOP-20
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
