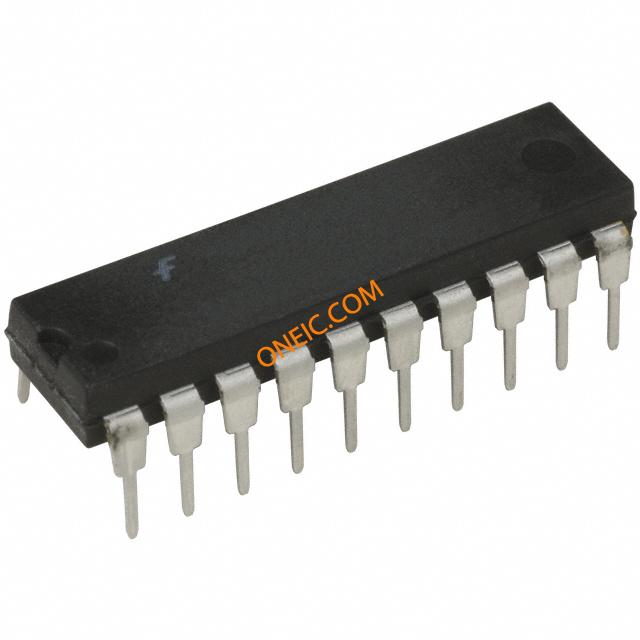

八路缓冲器/ 3态输出线路驱动器 Octal Buffer/Line Driver with 3-STATE Outputs
General Description
The VHCT244A is an advanced high speed CMOS octal bus transceiver fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The VHCT244A is a non-inverting 3-STATE buffer having two active-LOW output enables. This device is designed to be used as 3-STATE memory address drivers, clock drivers, and bus oriented transmitter/receivers.
Protection circuits ensure that 0V to 7V can be applied to the input and output Note 1 pins without regard to the supply voltage. These circuits prevent device destruction due to mismatched supply and input/output voltages. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up.
Features
■ High Speed: tPD 5.9 ns typ at VCC 5V
■ Power down protection is provided on inputs and outputs
■ Low power dissipation: ICC 4 PA max @ TA 25qC
■ Pin and function compatible with 74HCT244
