可配置电压转换和三态输出的20位双电源总线收发器 20-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
Are you looking for a device that can regulate the input voltage into your circuit? Texas Instruments" level translator is the perfect solution for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V ~ 3.60V
电路数 2
通道数 20
位数 20
传送延迟时间 2.90 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 56

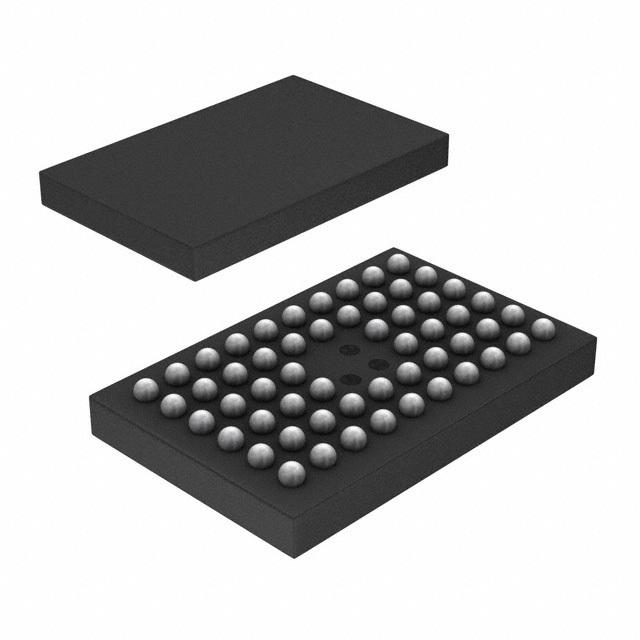

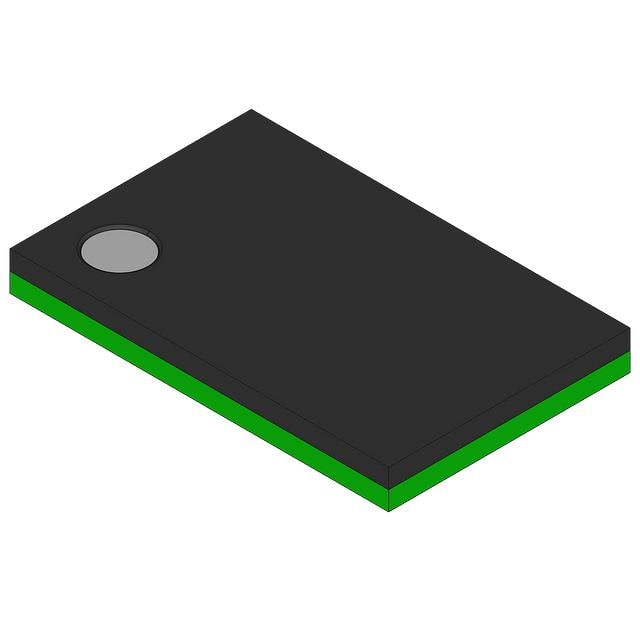

封装 BGA-56
高度 0.65 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
