八路透明D类锁存器与三态输出 OCTAL TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS
Do you want complete control of real time information? Implement this d-type low-level latch from Texas Instruments. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24 mA
电路数 8
通道数 8
位数 8
传送延迟时间 11.8 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole

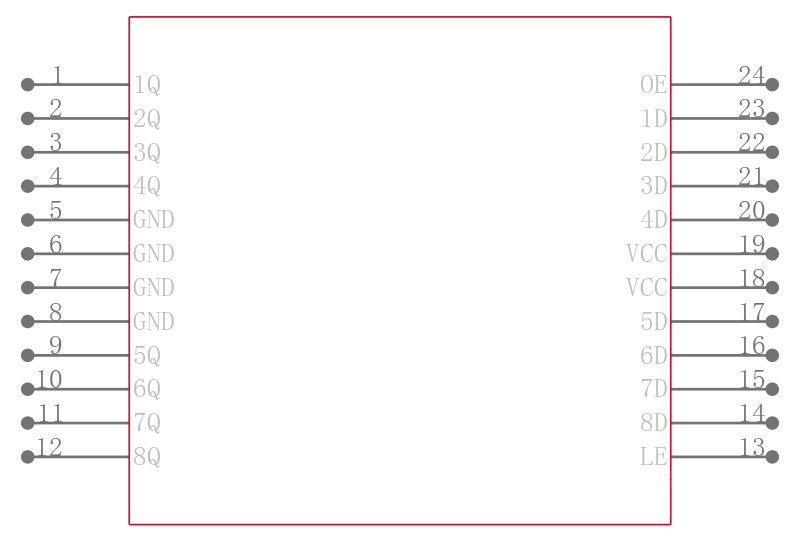

引脚数 24

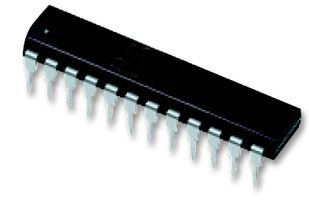

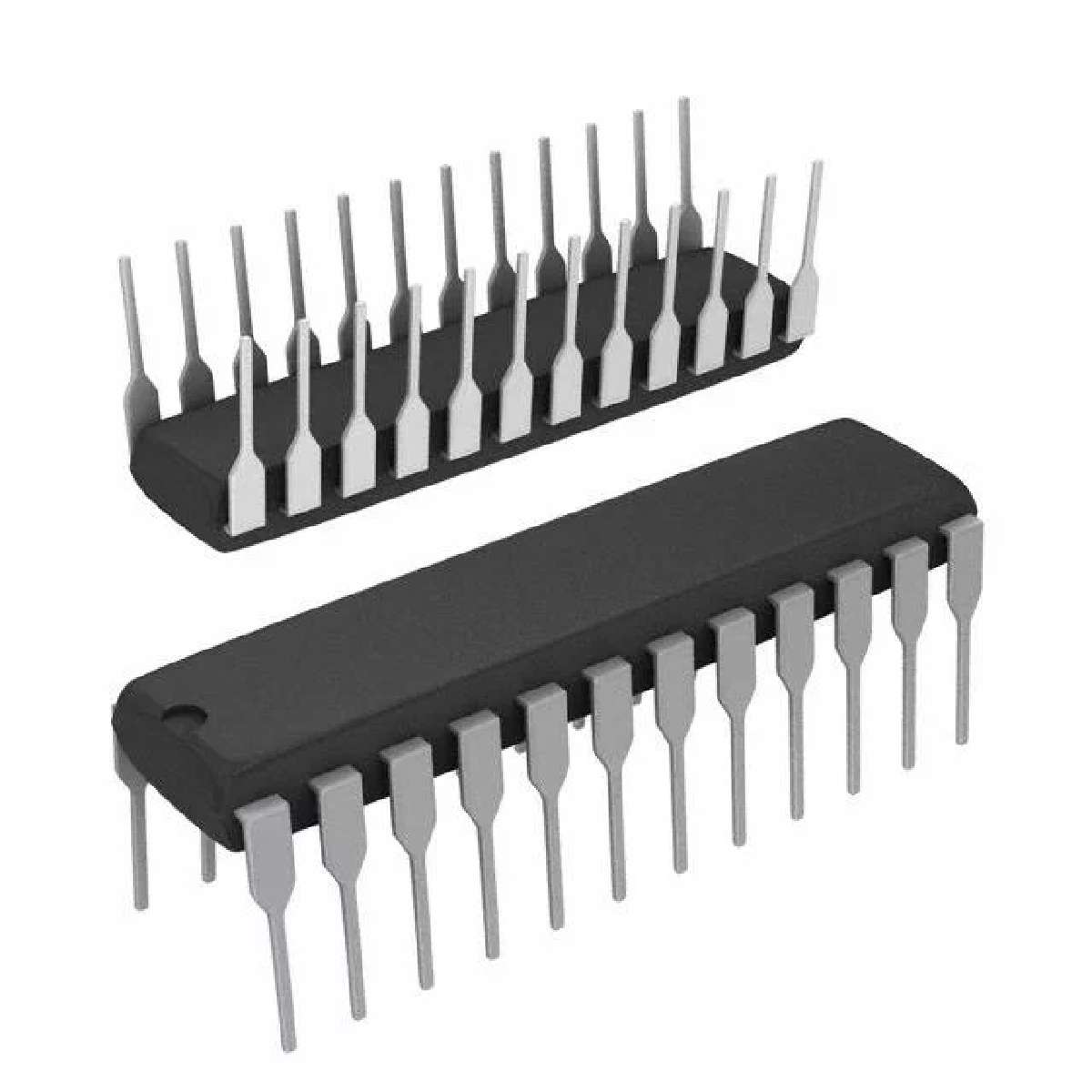

封装 DIP-24
长度 31.64 mm
宽度 6.73 mm
高度 4.57 mm
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
