3.3V ABT 32位边沿触发的D型触发器具有三态输出 3.3V ABT 32 BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3 STATE OUTPUTS
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 32 channels per chip.
频率 160 MHz
电源电压DC 2.70V ~ 3.60V
输出接口数 8
输出电流 12.0 mA
时钟频率 160 MHz
位数 32
传送延迟时间 5.30 ns
电压波节 3.30 V, 2.70 V
静态电流 10.0 mA
输入电容 3 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
安装方式 Surface Mount

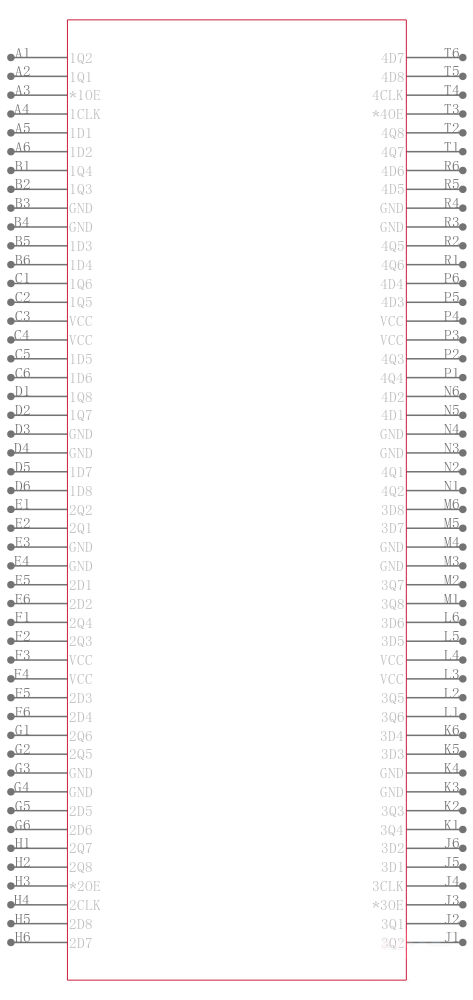

引脚数 96

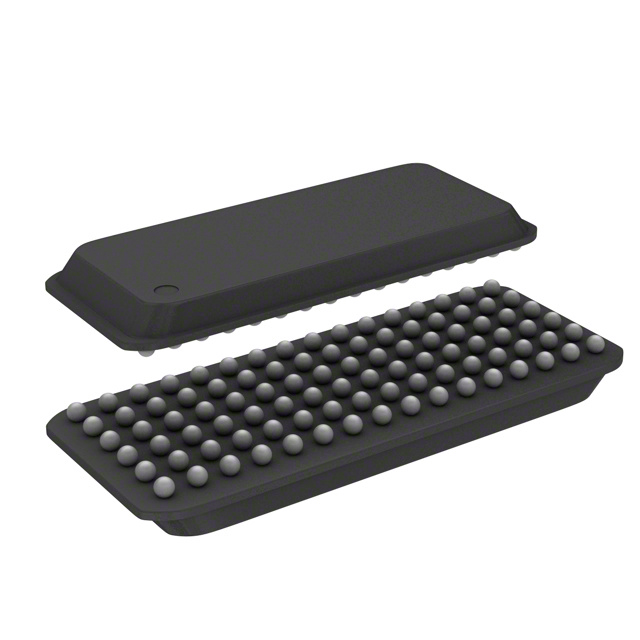

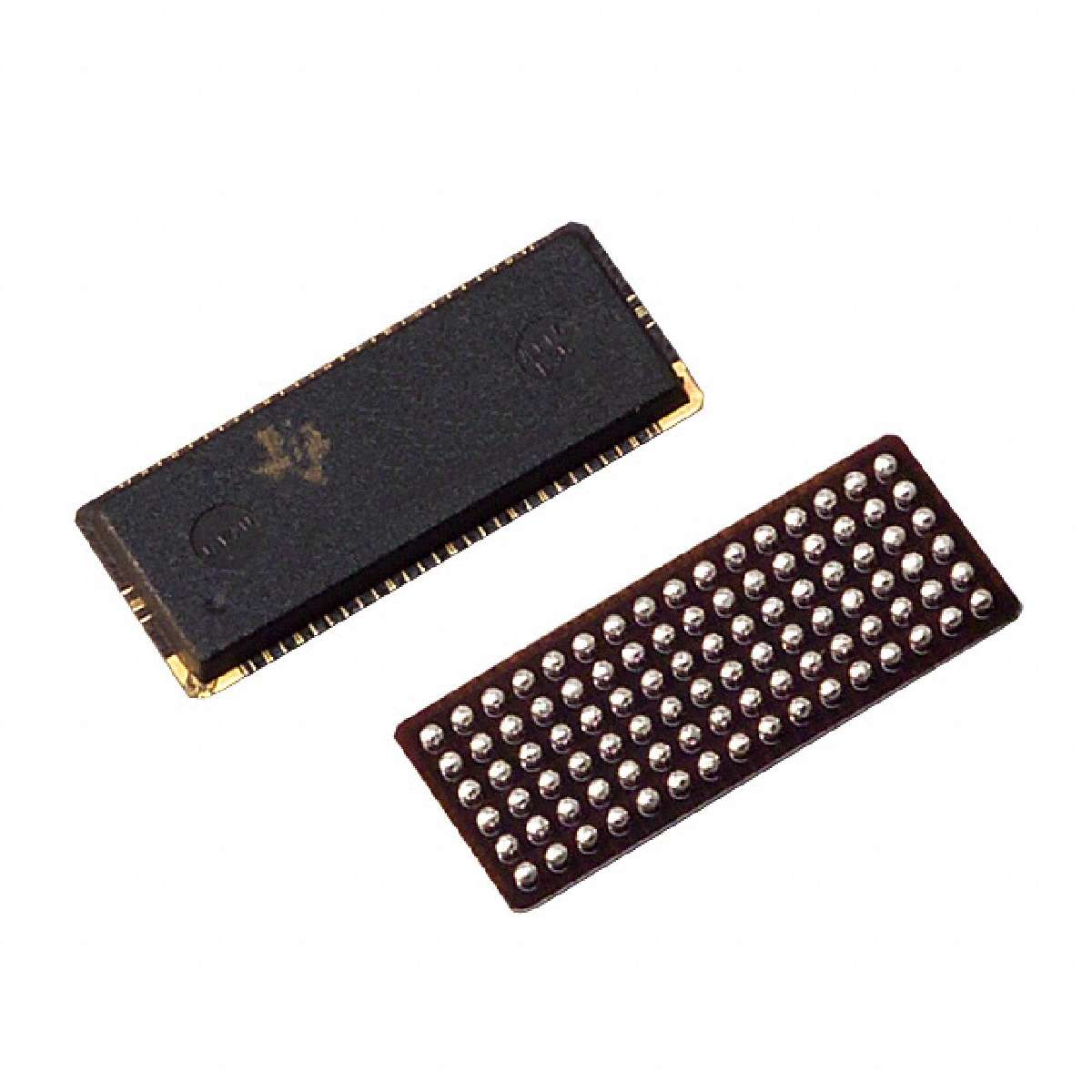

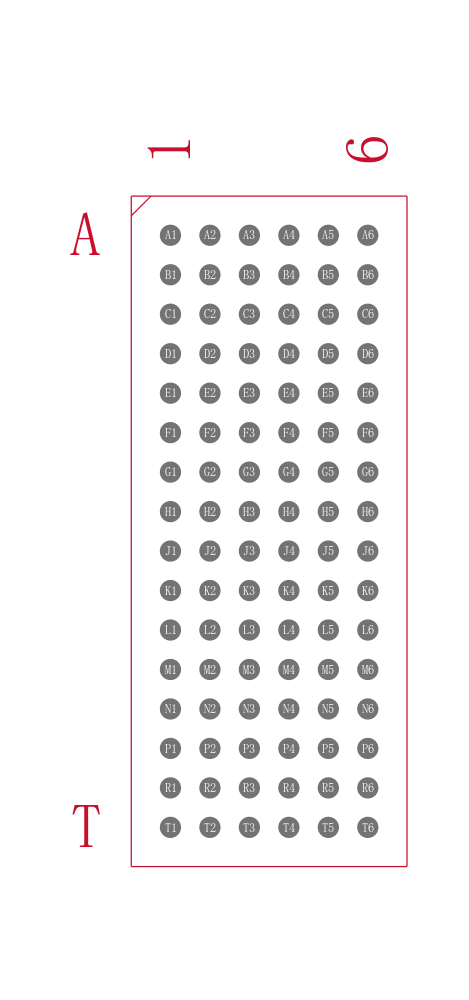

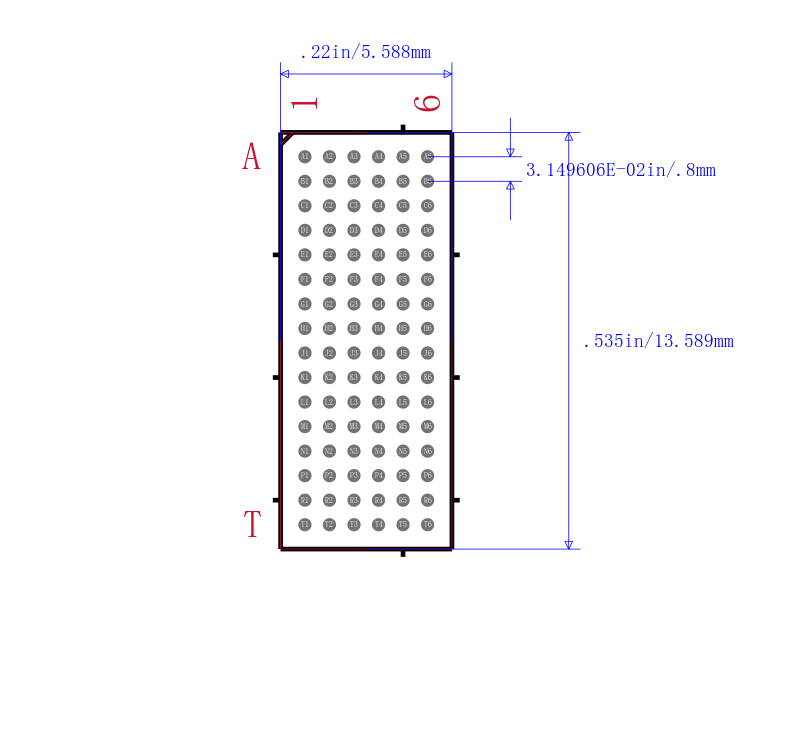

封装 LFBGA-96
高度 0.95 mm
封装 LFBGA-96
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
