74AVC 系列,Texas Instruments### 74AVC 系列
74AVC 系列,Texas Instruments
得捷:
IC TRANSLTR BIDIRECTIONAL 54BGA
欧时:
Texas Instruments 74AVCB164245ZRDR 16位 非反相 总线收发器, 54引脚 FBGA封装
贸泽:
Translation - Voltage Levels 16B Dual-Supply Bus Transceiver
艾睿:
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the 74AVCB164245ZRDR level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.4 V, while its maximum is 3.6 V.
安富利:
Bus XCVR Dual 16-CH 3-ST 54-Pin BGA MICROSTAR JUNIOR T/R
Chip1Stop:
Voltage Level Translator 54-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Voltage Level Translator 16-CH Bidirectional 54-Pin BGA MICROSTAR JUNIOR T/R
罗切斯特:
Voltage Level Translator 54-Pin BGA MICROSTAR JUNIOR T/R
DeviceMart:
IC BUS TRANSCVR 16BIT 54BGA
Win Source:
16-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS | IC TRNSLTR BIDIRECTIONAL 54BGA
电源电压DC 1.40V ~ 3.60V
输出接口数 16
输出电流 12.0 mA
电路数 2
通道数 16
位数 16
传送延迟时间 5.00 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 8
电源电压 1.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.4 V
安装方式 Surface Mount

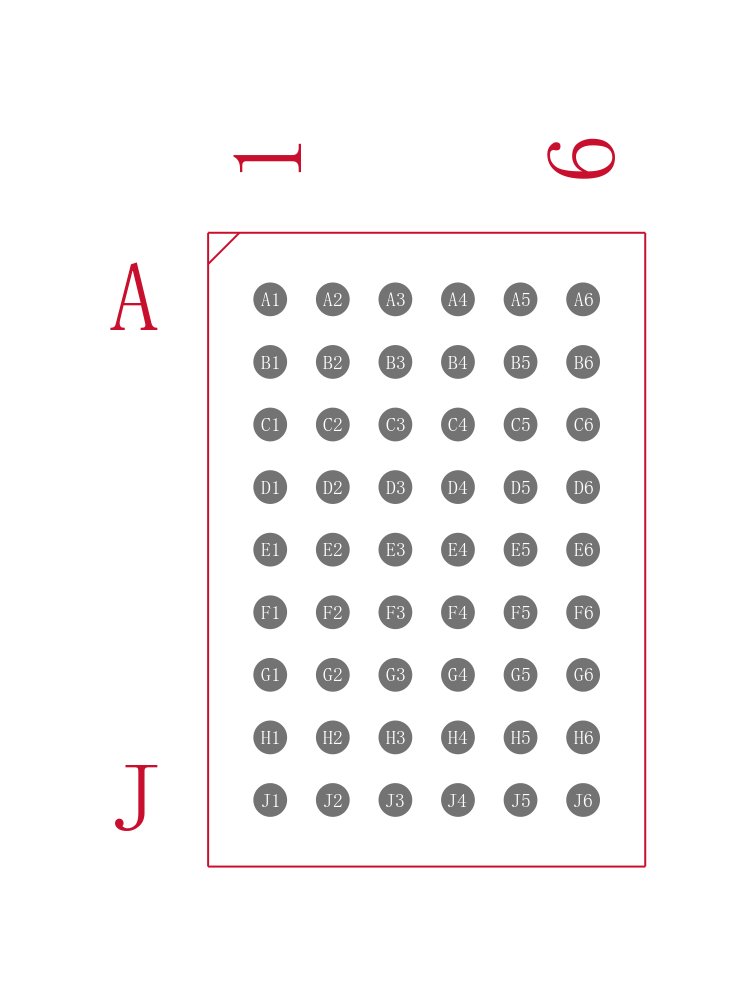

引脚数 54

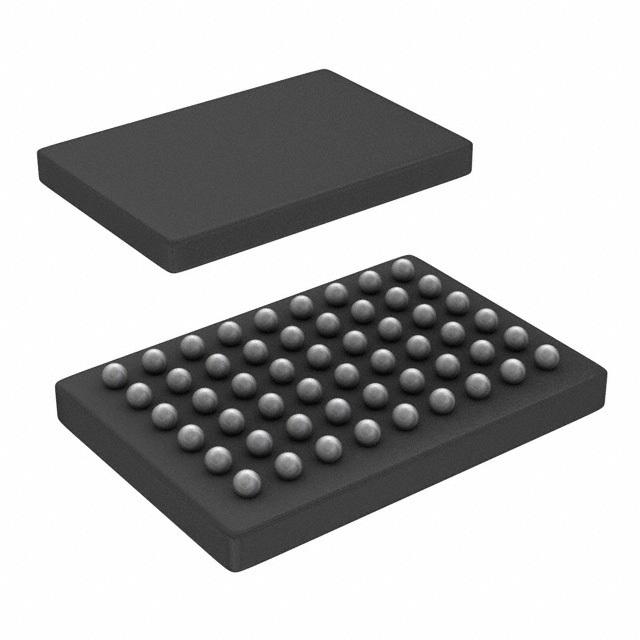

封装 BGA-54

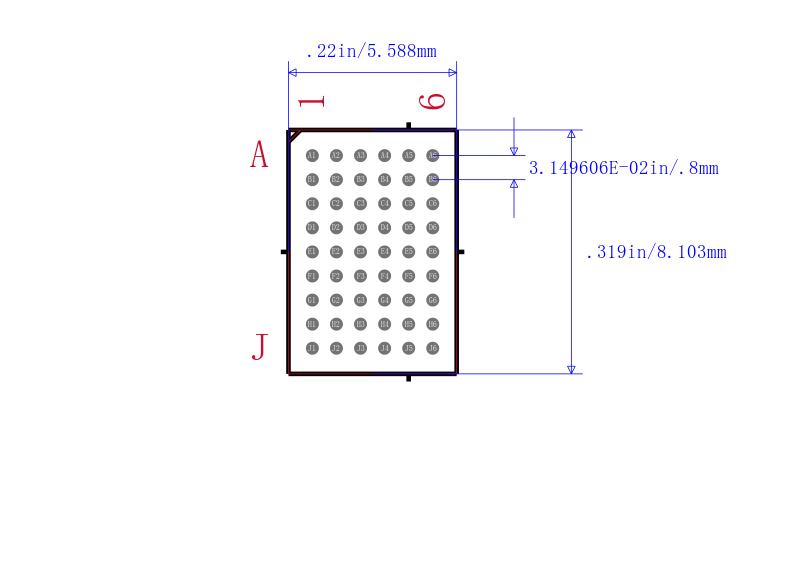

长度 8.1 mm
宽度 5.6 mm
高度 0.8 mm
封装 BGA-54
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
