73E4R091J

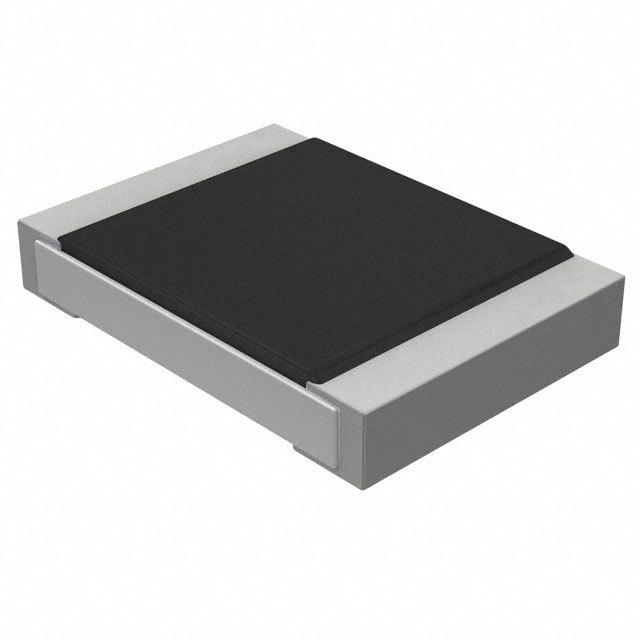

73E4R091J图片1

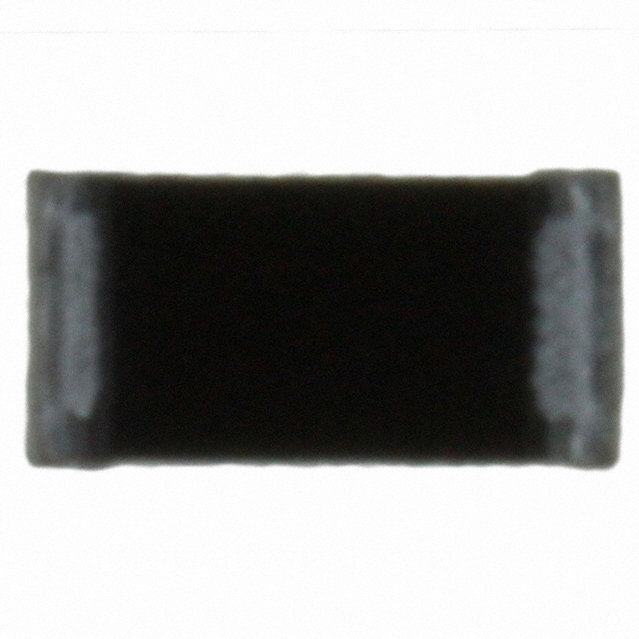

73E4R091J图片2

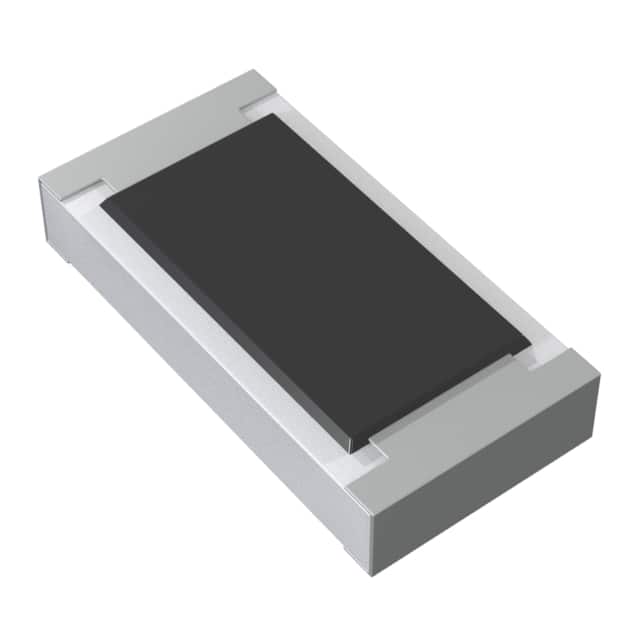

73E4R091J图片3
73E4R091J图片4
73E4R091J图片5
73E4R091J概述

1206 0.091Ω ±5% 0.5W1/2W ±100ppm/℃

Res Thick Film 1206 0.091 Ohm 5% 0.5W1/2W ±100ppm/°C Pad SMD T/R


立创商城:
91mΩ ±5% 500mW


得捷:
RES 0.091 OHM 5% 1/2W 1206


艾睿:
Use this 73E4R091J fixed single surface-mount resistor from CTS to obtain a visually clean layout. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 91m Ohm. It is also complete with current sensing technology. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. It has a tolerance of 5%.


Verical:
Res Thick Film 1206 0.091 Ohm 5% 0.5W1/2W ±100ppm/C Pad SMD T/R


Online Components:
Res Thick Film 1206 0.091 Ohm 5% 0.5W1/2W ±100ppm/°C Pad SMD T/R


Electro Sonic:
Res Thick Film 1206 0.091 Ohm 5% 0.5W1/2W ±100ppm/°C Pad SMD T/R


73E4R091J中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.5 W

产品系列 73Ex

电阻 91 mΩ

阻值偏差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.60 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买73E4R091J
型号: 73E4R091J
制造商: CTS 西迪斯
描述:1206 0.091Ω ±5% 0.5W1/2W ±100ppm/℃
