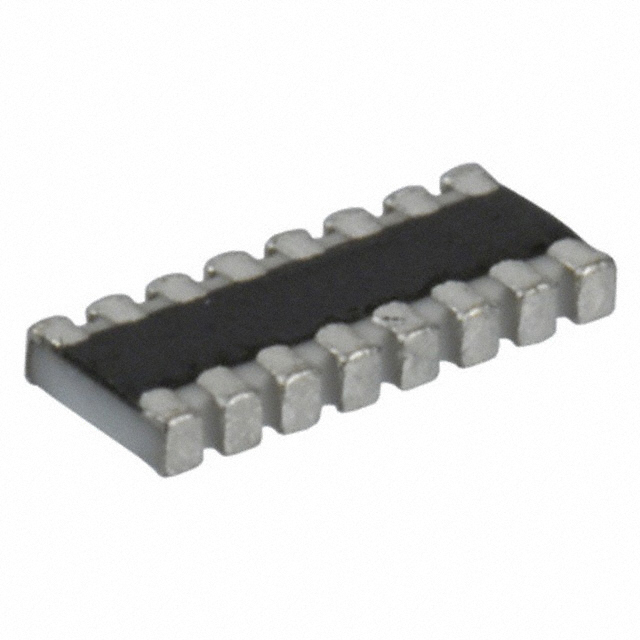

芯片电阻阵列 Chip Resistor Arrays
10 欧姆 ±5% 62.5mW 每元件功率 隔离 8 器网络,阵列 ±200ppm/°C 1506,凸面,长边端子
得捷:
RES ARRAY 8 RES 10 OHM 1506
立创商城:
10Ω ±5%
艾睿:
Use this 741X163100JP resistor array from CTS to conserve space by packing multiple resistors into one IC chip. This product&s;s 8 resistors have a value of 10 Ohm. This dependable part has a power rating of 0.5 1/2 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 16 terminals. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product&s;s terminal pitch is 0.5 mm. This device utilizes thick film technology. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. The 741X163100JP part has a convex termination style. This product is 3.8 mm long, 0.45 mm tall and 1.6 mm deep.
安富利:
Res Thick Film Array 10 Ohm 5% 1/2W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0402 Convex SMD Paper T/R
Chip1Stop:
Res Thick Film Array 10 Ohm 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16-Pin 15068 X 0602 Convex SMD Paper T/R
Verical:
Res Thick Film Array 10 Ohm 5% 0.5W1/2W ±200ppm/C ISOL 16-Pin 15068 X 0602 Convex SMD Medical T/R
Electro Sonic:
Res Thick Film Array 10 Ohm 5% 0.5W1/2W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0602 Convex SMD T/R
触点数 16
额定电压DC 25.0 V
容差 ±5 %
额定功率 0.5 W
耗散功率 0.063 W
电阻 10 Ω
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 16
封装 SMD
长度 3.8 mm
宽度 1.6 mm
高度 0.45 mm
封装 SMD
厚度 450 µm
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
