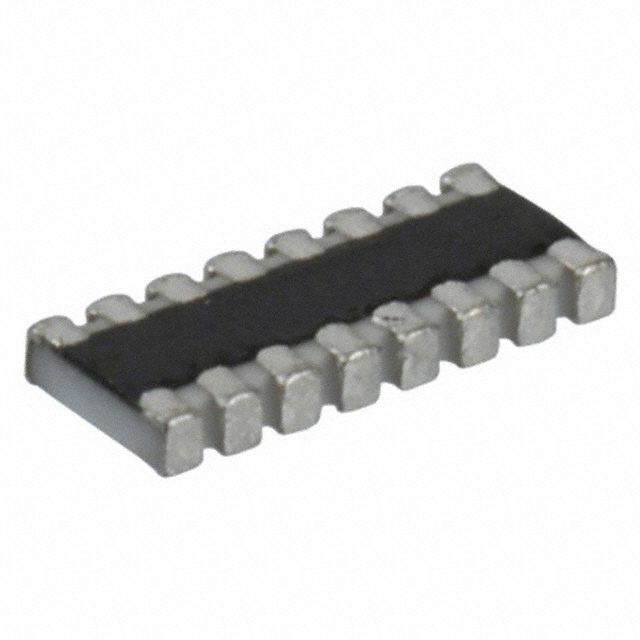

Res Thick Film Array 2.2KΩ 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16Pin 15068 X 0402 Convex SMD Paper T/R
2.2k Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals
得捷:
RES ARRAY 8 RES 2.2K OHM 1506
艾睿:
Use this 741X163222JP resistor array from CTS to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.5 1/2 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 8 resistors have a value of 2.2K Ohm. It has 16 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 3.8 mm long, 0.45 mm tall and 1.6 mm deep. The 741X163222JP part has a convex termination style. This device is made with thick film technology. It has a tolerance of 5%. This product&s;s terminal pitch is 0.5 mm. This part has an operating temperature of -55 to 125 °C.
Chip1Stop:
Res Thick Film Array 2.2K Ohm 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16-Pin 15068 X 0602 Convex SMD T/R
