Res Thick Film Array 22KΩ 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16Pin 15068 X 0402 Convex SMD Paper T/R
22k Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals
得捷:
RES ARRAY 8 RES 22K OHM 1506
立创商城:
22kΩ ±5%
艾睿:

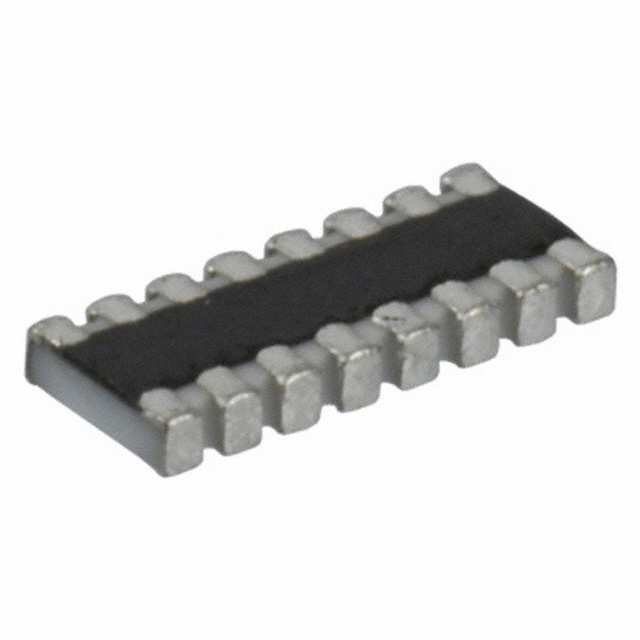

Downsize multiple resistors onto a single chip with the 741X163223JP resistor array, developed by CTS. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.5 1/2 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 8 resistors have a value of 22K Ohm. It has 16 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 125 °C. This product is 3.8 mm long, 0.45 mm tall and 1.6 mm deep. It has a tolerance of 5%. This product&s;s terminal pitch is 0.5 mm. The 741X163223JP part has a convex termination style. This device is made with thick film technology.
安富利:
Res Thick Film Array 22K Ohm 5% 1/2W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0402 Convex SMD Paper T/R
Chip1Stop:
Res Thick Film Array 22K Ohm 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16-Pin 15068 X 0602 Convex SMD T/R
