缓冲器和线路驱动器 Octal Buffer/Driver With 3-State Outputs
description
ThIs octal buffer or line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Together with the ’ACT11240, this device provides the choice of various combinations of inverting and noninverting outputs. The 74ACT11244 is characterized for operation from –40°C to 85°C.
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
Inputs Are TTL-Voltage Compatible
Flow-Through Architecture Optimizes PCB Layout
Center-Pin VCCand GND Configurations to Minimize High-Speed Switching Noise
EPIC™ Enhanced-Performance Implanted CMOS 1-m Process
500-mA Typical Latch-Up Immunity at 125°C

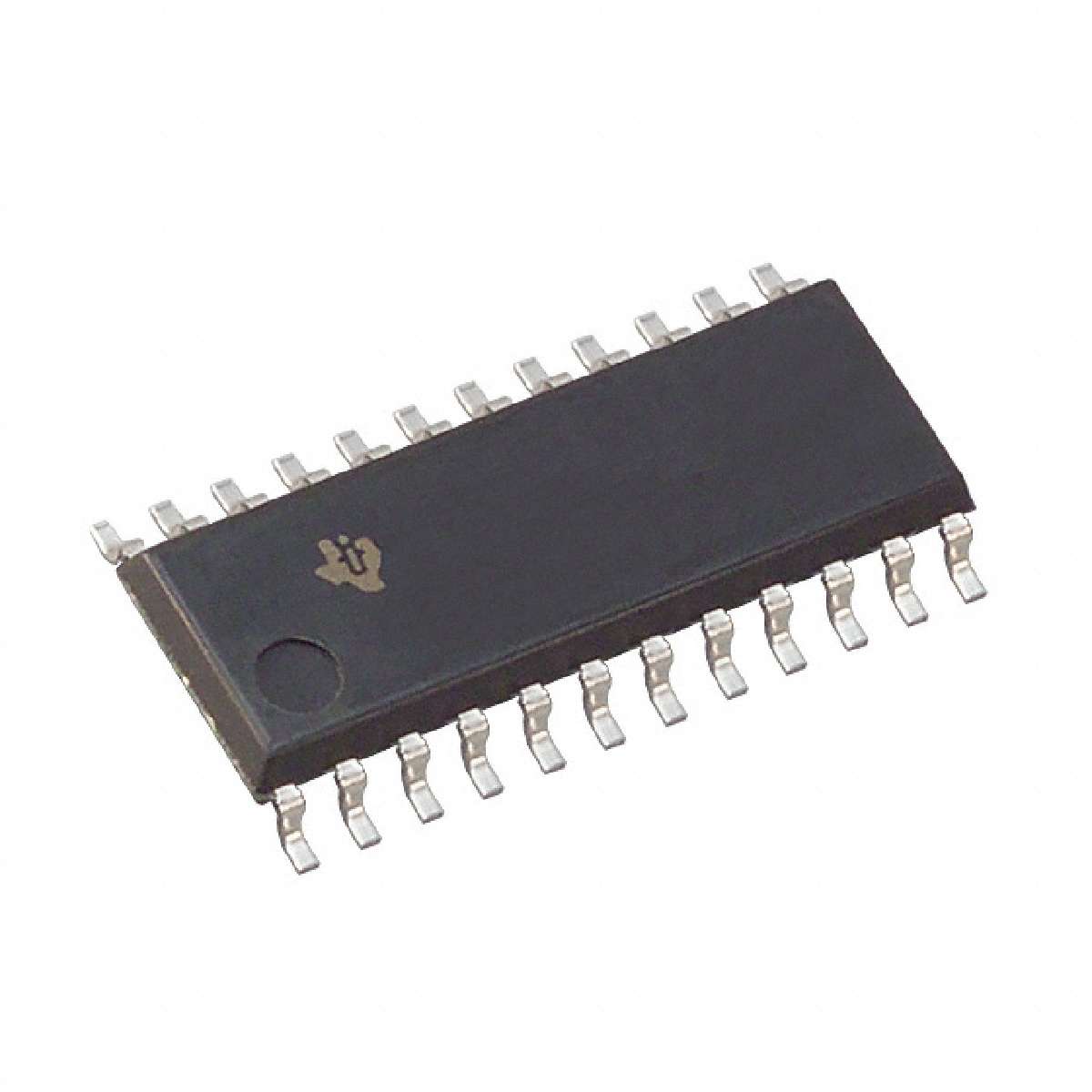

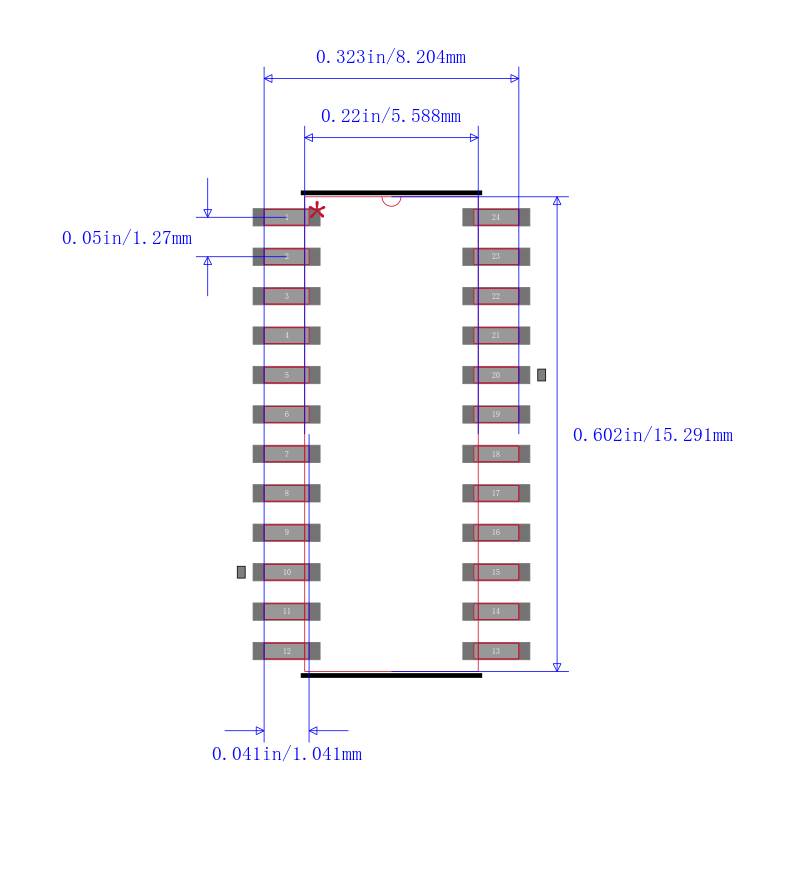

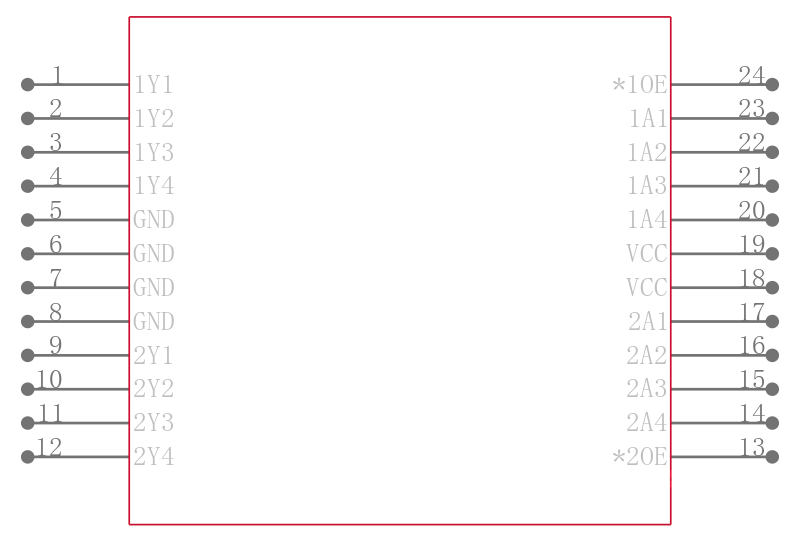

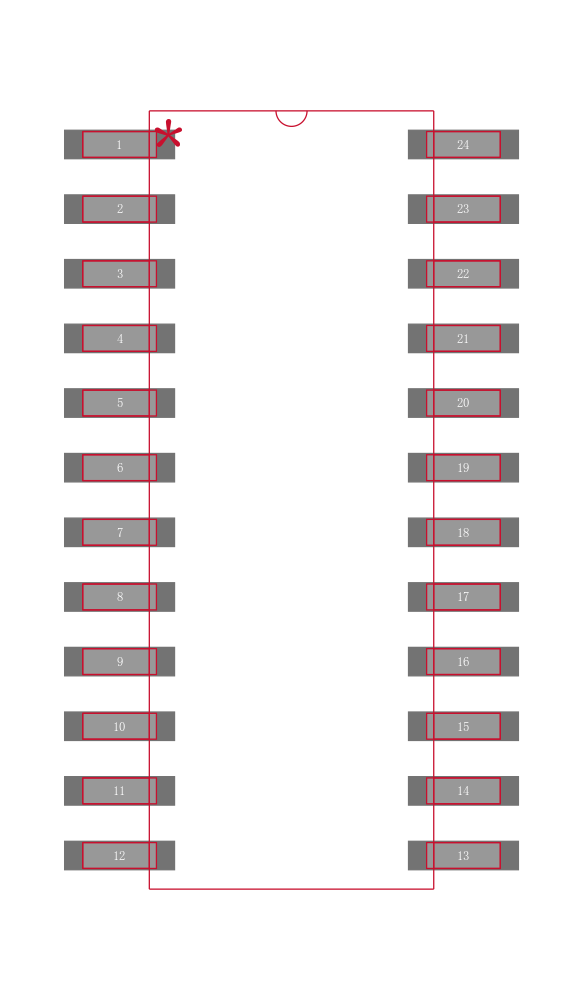

Package Options Include Plastic Small-Outline DW, Shrink Small-Outline DB, and Thin Shrink Small-Outline PW Packages, and Standard Plastic 300-mil DIPs NT
