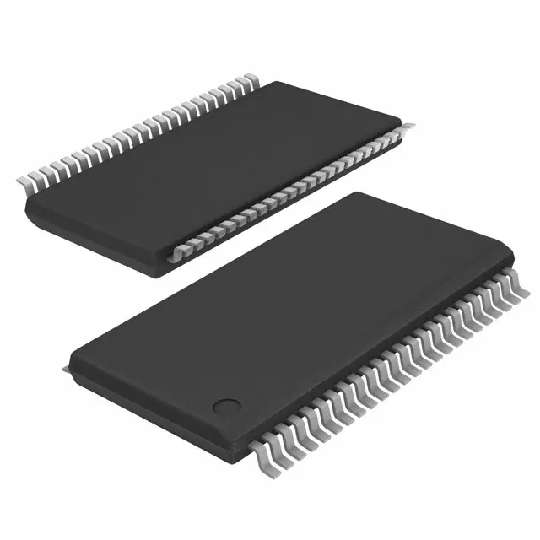

16Bit Bus Transceivers With 3-State Outputs 48-TVSOP -40℃ to 85℃
description
The ’ABTH162245 devices are 16-bit noninverting 3-state transceivers designed for synchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
• Members of the Texas Instruments Widebus™ Family
• A-Port Outputs Have Equivalent 25-Ω Series Resistors, So No External Resistors Are Required
• State-of-the-Art EPIC-ΙΙB™ BiCMOS Design Significantly Reduces Power Dissipation
• Typical VOLP Output Ground Bounce
< 1 V at VCC = 5 V, TA = 25°C
• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 500 mA Per JESD 17
• ESD Protection Exceeds 2000 V Per
MIL-STD-833, Method 3015; Exceeds 200 V
Using Machine Model C = 200 pF, R = 0
• Package Options Include Plastic Thin
Shrink Small-Outline DGG, Thin Very
Small-Outline DGV, and Shrink
Small-Outline DL Packages and 380-mil
Fine-Pitch Ceramic Flat WD Package
Using 25-mil Center-to-Center Spacings
