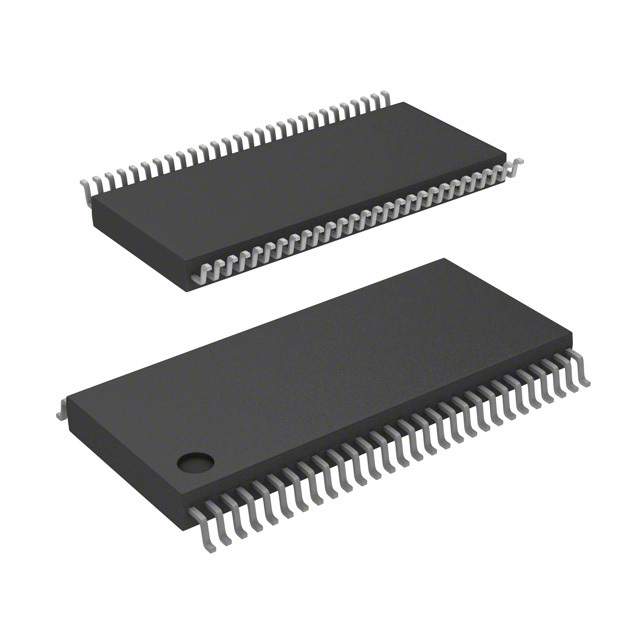

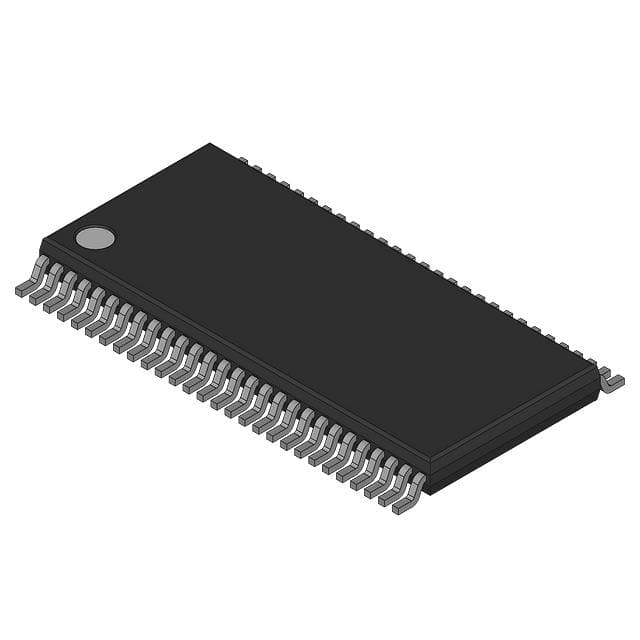

18位D型触发器带3态输出 18-Bit D-Type Flip-Flop with 3-STATE Outputs
General Description
The ACTQ18823 contains eighteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus ori ented applications.
Features
■Utilizes ’s FACT Quiet Series technology
■Broadside pinout allows for easy board layout
■Guaranteed simultaneous switching noise level and dynamic threshold performance
■Guaranteed pin-to-pin output skew
■Separate control logic for each byte
■Extra data width for wider address/data paths or buses carrying parity
■Outputs source/sink 24 mA
■Additional specs for Multiple Output Switching
■Output loading specs for both 50 pF and 250 pF loads
