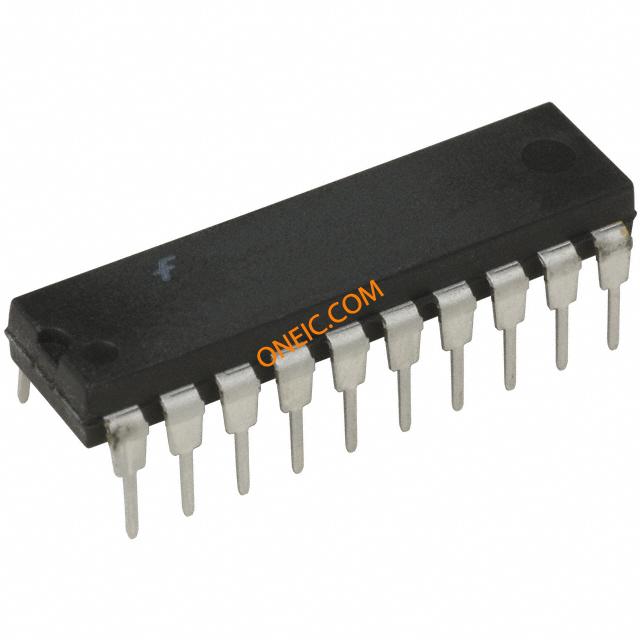

静音系列™八路D型触发器带3态输出 Quiet Series⑩ Octal D-Type Flip-Flop with 3-STATE Outputs
General Description
The ACQ/ACTQ574 is a high-speed, low-power octal D type flip-flop with a buffered Common Clock CP and a
buffered common Output Enable OE. The information presented to the D inputs is stored in the flip-flops on the LOW-to-HIGH clock CP transition.
Features
■ICCand IOZreduced by 50%
■Guaranteed simultaneous switching noise level and dynamic threshold performance
■Guaranteed pin-to-pin skew AC performance
■Inputs and outputs on opposite sides of the package allowing easy interface with microprocessors
■Functionally identical to the ACQ/ACTQ374
■3-STATE outputs drive bus lines or buffer memory address registers
■Outputs source/sink 24 mA
■Faster prop delays than the standard AC/ACT574
