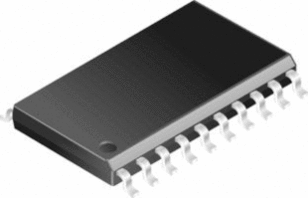

74AC374SC

八路D型IP- FL佛罗里达州运与三态输出 Octal D-Type Flip-Flop with 3-STATE Outputs

General Description

The AC/ACT374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-STATE outputs for bus-oriented applications. A buffered Clock CP and Output Enable OE are common to all flip-flops.

Features

■ ICC and IOZ reduced by 50%

■ Buffered positive edge-triggered clock

■ 3-STATE outputs for bus-oriented applications

■ Outputs source/sink 24mA

■ See 273 for reset version

■ See 377 for clock enable version

■ See 373 for transparent latch version

■ See 574 for broadside pinout version

■ See 564 for broadside pinout version with inverted outputs

■ ACT374 has TTL-compatible inputs
